|Electrical Control Method:
|Button Control & Touch Screen
|0-9999, Can Be Preset, Default 6 Cycles
|0-9999, Can Be Preset, Default 500 Times
|600 × 400 × 800 (mm) W × H × D Equipment Weight: 80kg
|Standards & Clauses:
|IEC60335-2-9:2006 Clause 19.101
|Interval Time Of Pushing Switch:
|0-99.9s，can Be Preset
IEC 60335-2-9 Endurance Test Equipment,
Toasters Abnormal Operation Endurance Test Equipment,
Button Control Endurance Test Equipment

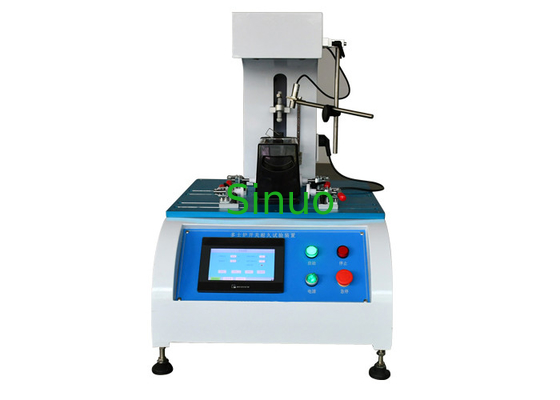

IEC60335-2-9 Toasters Abnormal Operation Endurance Test Equipment
1. Product overview
This equipment is based on IEC60335-2-9:2006 clause 19.101 production. It is mainly used for testing the on-off life test of household and similar bread toasters under rated input power and normal working conditions.
The driving mechanism is used to automatically realize the switch on and off of the bread loaf toaster. After each operation is completed, the machine is forced to cool to room temperature. Every 6 times of baking is forced to cool.
It adopts multi-function general fixture, which can hold different samples. It is universal and suitable for most bread toaster tests.
2. Main technical parameters
The dimensions of the equipment are 600×400×800 (mm) W×H×D, and the weight of the equipment is 80kg.
The equipment needs to be powered on, and the manual panel (button control) & touch screen system is used to control the operation or stop of the equipment. It is equipped with cooling fan and infrared temperature measurement system.
The equipment is tested by mechanical clamping, and the position of the clamping point can be adjusted, so it is suitable for most toasters.
|Electrical Control Method
|Button control and Touch Screen
|Sample Clamping Method
|Mechanical clamping, the position of clamping point is adjustable
|Forced cooling by high-power cooling fan
|Temperature Measuring Device
|Infrared temperature measurement system, when the infrared probe detects that the temperature is cooled to the set temperature, the next test is started.
|Interval Time of Pushing Switch
|0-99.9s,can be preset
|0-9999, can be preset, default 6 cycles
|0-9999, can be preset, default 500 times
|Current Detecting Device
|It is equipped with a device for automatically detecting the working current of the specimen: the upper and lower limits of the current detection can be adjusted, and with a light indicator indicating status.
