| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 10 Sets Per Month |
IEC 60529 IPX8 Water Ingree Testing Equipment Deep Immersion Test Tank
Product introduction:
The high pressure water tank is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under continuous immersion in water at degree IPX8 as per IEC 60529:2013.
The water tank is made of stainless steel, the equipment is controlled by PLC, test parameters can be set on the touch screen directly, water supply and pressure are achieved automatically.

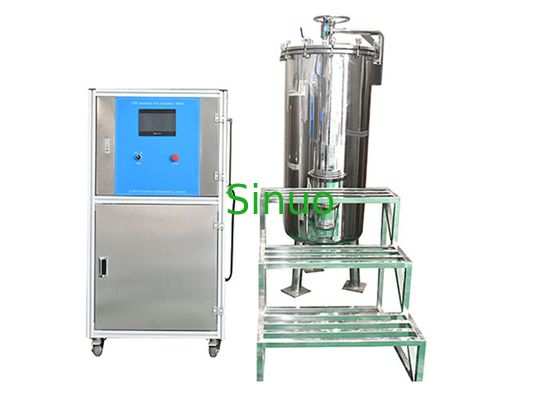

This complete set of equipment consists of a comprehensive control cabinet, IPX8 pressure vessel, and a stainless steel stair. The intelligent water supply and control system consists of a water supply tank, a water supply system, and a control system. The test water supply flow is controlled by PLC, frequency converter, and sensors.
Technical Parameters:
| Item | Specifications | |
| Equipment power supply | Match client's local power supply requirements | |
| Small water pump |
Brand: South, model no.: CHL2-40, 380VAC, 50Hz, 0.55kw Protection class: IP55 Insulation class: F |
|
| IP code test range | IPX8 test | |
| IPX8 pressure tank | Diameter and height |
φ600mm Full height of the tank is 1500mm (From upper flange point to lower flange point is 1500 mm), the height of tank body is 1200mm |
| Pressure range | 0.01~0.50Mpa | |
| Tank material | SUS304 stainless steel | |
| Pressurization method | Water pressure pressurization, the current pressure value is collected from the PLC from time to time, and the inverter controls the pump speed and frequency to pressurize, and the pressure is constant | |
| Pressure sensor accuracy | 0.5 grade | |
| Limit pressure of safety valve protection | 0.55 MPa | |
| Pressure protection |
a. mechanical protection: spring-type safety relief valve b. program control: the pressure exceeds the upper limit value, the pump will stop working and immediately release the pressure |
|
| Cover opening method | Can be lifted by the screw rod and moved laterally, and can be fully opened for convenient sample placement | |
| Control | PLC control | |
| Test time | Set according to the test standard (range 1-9999 seconds), the unit is: second | |
| Stair | Stainless steel stair | |
