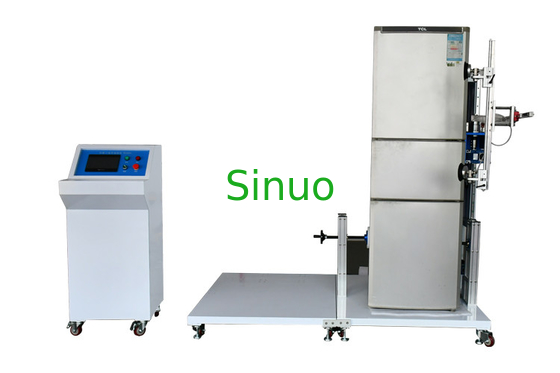

EN 16825 Refrigerated Storage Cabinets Door Open Close Test System
Product overview
The refrigerated storage cabinets door drawer open and close test equipment is designed and manufactured according to EN 16825:2016 standard and customer customized requirements, it is used for the durability test of the vertical door of the vertical refrigerated storage cabinets, and also used for the door opening and closing actions in conjunction with the energy consumption test. It is a dedicated fully automated test equipment, suitable for testing and certification agencies, factory laboratories and other testing departments.
This equipment adopts PLC intelligent control and standard color LCD touch screen, it is equipped with position adjustable actuators and vacuum suction cups to absorb the surface of door. The test angle, speed, and door opening and closing time can be preset, so as to truly simulate the opening and closing actions, achieving an intelligent control method and multiple functions in one machine.
Technical parameters
| No: | Item | Contents |
| 1 | Input power supply | Match client's local power supply requirements |
| 2 | Electrical control | Mitsubishi PLC |
| 3 | Opertation | Weinview 7” touch screen |
| 4 | Drive | Cylinder |
| 5 | Suitable samples |
Max. 2 vertical sections, and each vertical section has 1 door (Or can be customized) |
| 6 | Column |
Left column of door opening and closing, right column of door opening and closing, each column contains a lifting mechanism, which can adjust the height of the manipulator to match the door opening and closing position (Or can be customized according to specimen types and quantities) |
| 7 | Manipulator |
Left manipulators for door opening and closing :1 set (arranged on the column of door opening and closing); Right manipulators for door opening and closing :1 set (arranged on the column of door opening and closing); (Or can be customized according to specimen types and quantities) |
| 8 | Adsorption structure |
Vacuum suction cup, continuous and stable adsorption, will not fall off, each set of manipulator is equipped with one set (Or can be customized according to specimen types and quantities) |
| 9 | Door opening and closing times | Can be preset on touch screen, 0-999999 adjustable, automatically stop testing after the preset test times are reached |
| 10 | Door opening and closing angle | 0-90°can be preset on the touch screen , can be adjustable |
| 11 | Door opening and closing angle dwell time | Can be preset on the touch screen,0-99999.9S can be adjustable |
| 12 | Door opening and closing speed | 0-10 times/min, can be preset on the touch screen , can be adjustable |
| 13 | Door opening and closing interval time | Can be preset on the touch screen, 0-99H59M59S can be adjustable |
| 14 | Door opening and closing total test time | Can be preset on the touch screen, 0-99H59M59S can be adjustable |
| 15 | Auxiliary positioning mechanism for samples | One set, fixed the distance between the refrigerated storage cabinet and the test equipment |
| 16 | Test contents | Door opening and closing |
| 17 | Protection | Safety protection such as leakage, short circuit and overload |
| 18 | Equipment overall dimensions | WDH=approx. 1300×900×2000mm |
| 19 | Equipment weight | 180kg |
Working principle and equipment structure
Working principle
The opening and closing of the door adopts a double-cylinder structure, the opening action is completed by one cylinder, and the closing action is completed by another cylinder. The opening cylinder is softly connected to the vacuum suction cup, and the closing mechanism has an angle limit function.
Equipment Structure
It adopts column structure, it is equipped with a two-station door opening and closing column structure. Each column contains one set of door opening and closing mechanisms, which can meet the test of a refrigerated storage cabinet with one vertical door in two vertical directions. The structure can be customized according to client's specimen's types and quantities.
|
|
