| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Carton Box |
| Delivery Period: | 5 Days |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 100 Sets Per Month |
IEC 60529 IPX6 Hose Nozzle with Digital Flow Meter
Product information:
The jet nozzle is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX6.
It ensures that the water spray speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 6.
Feature:

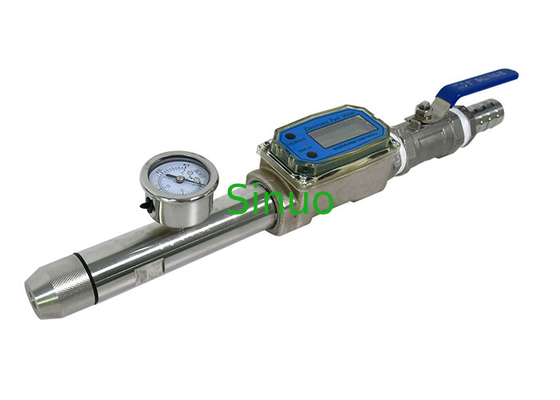

The IPX 6 hose nozzle set consists of a jet handle that is equipped with a digital flow mater and a pressure gauge.
– Interchangeable nozzles that assemble easily to the gun.
– Stainless steel joint, easy to butt fiber hose.
Technical parameters:
| IP Code | IPX6 |
| Nozzle Internal Diameter | Ф12.5mm |
| Delivery Rate per Standard requirements | 100±5 L/min |
| Distance from Nozzle to Enclosure Surface | 2.5~3m |
| Core of the Substantial Stream | Circle of approximately 120 mm diameter at 2.5 m distance from nozzle |
| Test Duration | Likely 1min/m² (minimum: 3 min) |
| Pressure Gauge | 0~0.25MPa |
| Digital flow meter | 8L/min ~120L/min |
Video
Video
Video
Video
|
|
