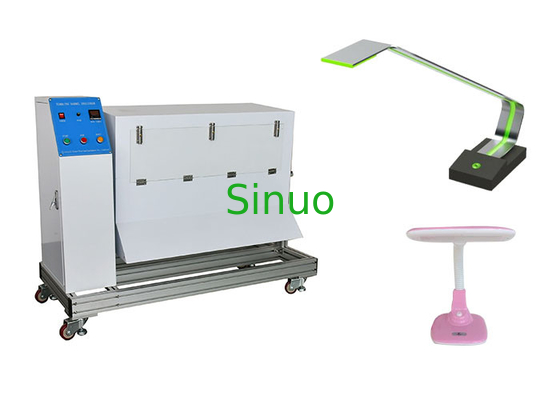

High Quality Tumbling Barrel Drop Test Machine /Rolling Drop Tester IEC60320-1
Overview
This tumbling barrel test apparatus conforms to the standard requirements of IEC 60598-1 clause 4.13.6, figure 25. This device is suitable for checking whether plug-ballast / transformers and mains socket-outlet-mounted luminaires have adequate mechanical strength.
The tumbling barrel part of this test apparatus fully meets the requirements of IEC60598-1 figure 25, the test times can be preset, the test apparatus will automatically stop when the set test times completed, the whole operation of this test apparatus is easy.
Technical parameters
| Tumbling Barrel rotation speed | 5rpm (default before factory) |
| Fall frequency | 10 time per min |
| Material | 3mm high quality steel plate |
| Test times | 0~9999 can be preset |
| Fall height | 500 mm |
| Barrel width | 1000 mm (in order to be compatible with user’s big specimens) |
| Barrel number | Single |
| Application | Plug-ballast/transformers and mains socket-outlet-mounted luminaires |
| Standards | IEC 60598-1 clause 4.13.6, figure 25 |
| Power supply | 220V,50Hz |
3 Test procedures and operation steps (Extracted from IEC 60598-1 clause 4.13.6)
Plug-ballast/transformers and mains socket-outlet-mounted luminaires shall have adequate mechanical strength.
Compliance is checked by the following test, which is made in a tumbling barrel as shown in Figure 25.
The barrel is turned at a rate of five revolutions per minute, ten falls per minute thus taking place.
The sample falls from a height of 50 cm onto a steel plate 3 mm thick, the number of falls being:
– 50 if the mass of the sample does not exceed 250 g;
– 25 if the mass of the sample exceeds 250 g.
After the test, the sample shall show no damage within the sense of this standard, but it need not be operative and any damage to the glass bulb shall be ignored. Provided that the protection against electric shock is not affected, small pieces which may have broken off the
sample are ignored.
Distortion of pins and damage to the finish and small dents which do not reduce the creepage distances or clearances below the values specified in Section 11 are ignored.
