5J Striking Elements Pendulum Impact Test Apparatus IEC 60598-1

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 10 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 100 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2122B
Applied Standards:
IEC 60598-1
Appled Specimen:
Luminaries
Striking Element:
5J
Equivalent Mass Kg:
1.7kg
Striking Element Material:
Steel
Pendulum Rod Length:
1000 Mm
Highlight:

IEC 60598-1 Pendulum Impact Test Apparatus

,

5J Pendulum Impact Test Apparatus

Product Description



IEC 60598-1 5J Striking Elements Pendulum Impact Test Apparatus



Equipment Overview

This test apparatus is used for the impact resistance test of household and similar electronic and electrical products and their accessories such as plugs and sockets and wall mounted mounting boxes, screw glands, covers, switches, lamps, etc., to assess the safety performance and mechanical strength level of the products.

It is designed and manufactured according to IEC60068-2-75:2014, IEC62262:2002 and it is required by IEC60598-1:2017, IEC60884-1:2013, IEC60669-1, etc.

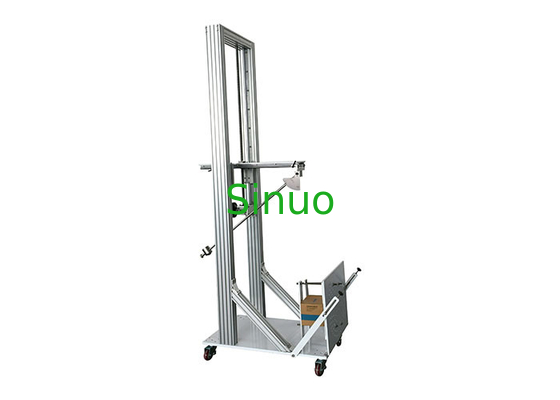

The high-energy pendulum impact test apparatus adopts a trolley structure, can move forward, backward, left and right, the impact height is adjustable through the screw guide, the impact angle is adjustable from 0 to 90°. The striking element is free released at a certain height through a 1 m pendulum rod, impact the specimen at the lowest point in the vertical direction, after the conversion of gravitational potential energy to kinetic energy, to achieve the purpose of impact test on the sample.



2 Technical parameters

Striking Elements (Energy/J) 5J
Equivalent Mass kg 1.7kg, please refer to following table 1
Striking Elements Material Steel
Pendulum rod Length 1000 mm, outer diameter 15.9 mm, wall thickness 1.5 mm steel pipe
Impact Point Up and down adjustable, stroke: 200-1200mm, the height can be customizable
Height of Fall 0-500mm, scale display
Striking Elements Fix and Release Method Fixed by mechanical latch, released manually


How to define the required impact height?

According to the relative test requirements to select impact energy and the following table, select the corresponding fall height. If the 5J energy test of IK08 is required, the fall height is 300mm.



IK Code IK06 IK07 IK08 IK09 IK10 -
Energy / J 1 2 5 10 20 50
Equivalent mass / kg(±2%) 0.25 0.5 1.7 5 5 10
Height of fall (±1%/mm) 400 400 300 200 400 500
