Product Description

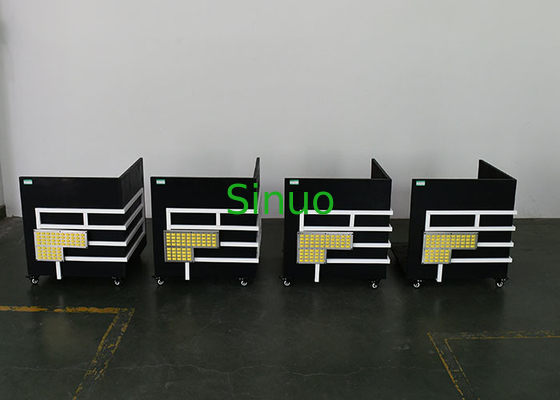

IEC60335-1 60 Measuring Points Test Corners 60cm Matt Black Painted Plywood



Equipment Overview:



IEC60335-1:2016 “Household and similar electrical appliances-Safety-Part1:General requirements” clause 11.

The test corners are mainly used to provide environmental conditions that meet the standard requirements for temperature rise testing of various electrical and electrical products.

The test corners with different distribution specifications, numbers of temperature measuring points and external dimensions can be customized according to the actual tested samples.



Test Principle:



Thermocouples used for determining the temperature rise of the surface of walls, ceiling and floor of the test corner are attached t the back of small blackened disks of copper or brass, 15mm in diameter and 1mm thick. The front of the disk is flush with the surface of the board. The thermocouples are connected to the temperature measurement instrument to monitor the temperature at each point in real time.



Technical Parameters:





Dimensions

WDH=600X600X600mm

Other dimensions can be customized

Thermocouple American original OMEGA thermocouple with diameter less than 0.3mm, type K
Thermocouple Arrangement All lead to the terminal block
Temperature Measurement Copper 15mm diameter, 1mm thick brass sheet, the front surface of the round copper sheet is flush with the surface of the plywood
Temperature Measurement Points 20 points per each surface, total 60 temperature measuring points
Temperature Measurement Point Arrangement 100×100mm square distribution, can be customized 76×76mm or 50×50mm
Plywood 20mm thickness, matte black paint on the front and gray film on the back
Structure 1 base plate, 2 side plates
Optional Temperature measurement instrument



Structure:



It consists of 20mm thick plywood boards coated with matt black paint, with temperature measuring copper on its surface, and thermocouple connected to the terminal block. The size of the plywood and the number of temperature measurement points can be customized.



60 Measuring Points Test Corners 60cm Matt Black Painted Plywood 0





products
PRODUCTS DETAILS
60 Measuring Points Test Corners 60cm Matt Black Painted Plywood
MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 1 Month
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1102-60CM60P
Dimensions:
60cm*60cm*60cm
Material:
Matt Black Painted Plywood
Thickness:
20mm
Thermocouple:
OMEGA, Type K
Total Measuring Points:
60 Points
Each Side Measuring Points:
20 Points
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
1 Month
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
20 Sets Per Month
Highlight

20mm 60 Measuring Points Test Corners

,

OMEGA 60 Measuring Points Test Corners

Product Description



IEC60335-1 60 Measuring Points Test Corners 60cm Matt Black Painted Plywood



Equipment Overview:



IEC60335-1:2016 “Household and similar electrical appliances-Safety-Part1:General requirements” clause 11.

The test corners are mainly used to provide environmental conditions that meet the standard requirements for temperature rise testing of various electrical and electrical products.

The test corners with different distribution specifications, numbers of temperature measuring points and external dimensions can be customized according to the actual tested samples.



Test Principle:



Thermocouples used for determining the temperature rise of the surface of walls, ceiling and floor of the test corner are attached t the back of small blackened disks of copper or brass, 15mm in diameter and 1mm thick. The front of the disk is flush with the surface of the board. The thermocouples are connected to the temperature measurement instrument to monitor the temperature at each point in real time.



Technical Parameters:





Dimensions

WDH=600X600X600mm

Other dimensions can be customized

Thermocouple American original OMEGA thermocouple with diameter less than 0.3mm, type K
Thermocouple Arrangement All lead to the terminal block
Temperature Measurement Copper 15mm diameter, 1mm thick brass sheet, the front surface of the round copper sheet is flush with the surface of the plywood
Temperature Measurement Points 20 points per each surface, total 60 temperature measuring points
Temperature Measurement Point Arrangement 100×100mm square distribution, can be customized 76×76mm or 50×50mm
Plywood 20mm thickness, matte black paint on the front and gray film on the back
Structure 1 base plate, 2 side plates
Optional Temperature measurement instrument



Structure:



It consists of 20mm thick plywood boards coated with matt black paint, with temperature measuring copper on its surface, and thermocouple connected to the terminal block. The size of the plywood and the number of temperature measurement points can be customized.
