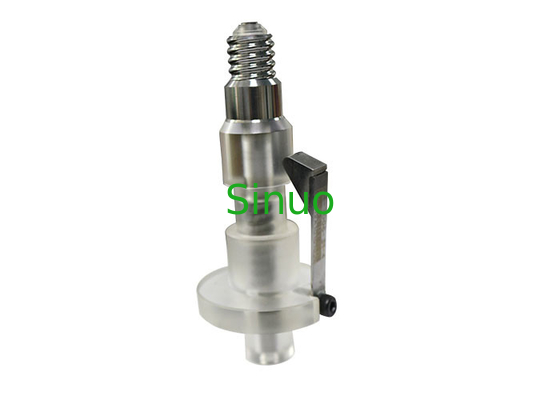

IEC 60061-3 E14 Lamp Cap Holder Gauges Go Not Go Contacting Making Gauge
Product Overview:
The E14 lamp cap gauges are made of Japan DC53 material, Rockwell hardness 58-60 °, the E14 lamp gauges comply with the standard of IEC 60061-3, which is suitable for the quality inspection of the electric light bulb of the E14 screw lamp caps and lampholders. Its structure and related waveforms (such as thread waveform) are calculated and optimized by computer, and then passed the processing of the computer machine tool, a high degree of precision and beauty has been achieved. The material is made of high cemented carbide with strong anti-rust ability.
E14 Lamp Cap Go Gauge (7006-27F-1)
The shape part of the edge of the thread shall be broken with radius of 0.2mm to 0.3mm.
Purpose:To check the maximum dimensions of the screw thread and dimension T1 minimum of caps on finished lamps.
Testing :When the cap on a finished lamp has been screwed into the gauge as far as it will go, the center contact shall be co-planar with, or project beyond, surface X.
E14 Lamp Cap Not Go Gauge ( 7006-28B-1)
Purpose:To check the minimum outside (major) diameter of the screw thread, dimension d, of E14 caps on finished lamps.
Testing :When the gauge is placed over the thread of the cap on a finished lamp, held cap uppermost, the centre contact shall not project beyond surface X. Only the weight of the gauge itself shall be used in the test.
E14 Lamp Cap Prevent Accidental Contact Gauge ( 7006-55-2)
Purpose:Gauge for finished lamps fitted with E14 caps for testing protection against accidental contact 7006-55-2 of IEC60061-3.
Testing :The shape of the lamp with regard to protection against accidental contact is assumed to be correct if the test sample being pushed as far as possible into the gauge, plane W does not protrude beyond plane V.
The application of this gauge is restricted to the following lamps when they are fitted with E14 caps, in accordance with sheet 7004-23: Candle lamps, Round bulb lamps, Domestic tubular lamps, Pygmy lamps.
Sinuo Guages List for E14 Lamp Caps:
| 1 | E14 Lamp Cap | E14 Lam Cap “Go” Gauge | 7006-27F-1 |
| 2 | E14 Lamp Cap “Not Go” Gauge | 7006-28B-1 | |
| 3 | E14 Lamp Cap Prevent Accidental Contact Gauge | 7006-55-2 | |
| 4 | E14S1 Lamp Cap “Go” Gauge | 7006-27G-1 | |
| 5 | E14 Lamp Cap Contacting Making Gauge | 7006-54-2 | |
| 6 | E14 Lamp Cap Torque Test Gauge | IEC60968Fig2 |
| 1 | E14 Lamp Holder | “Go” Gauge | 7006-25-7 |
| 2 | “Not Go” Gauge | 7006-26-4 | |
| 3 | Contacting Making Gauge | 7006-30-2 | |
| 4 | Candle Lamp Contacting Making Gauge | 7006-30A-1 | |
| 5 | Prevent Accidental Contact Gauge | 7006-31-4 | |
| 6 | Torque Test Cap | IEC 60238 Figure5 | |
| 7 | Test Cap "A" | IEC 60238 Figure13 | |
| 8 | Test Cap "b" | IEC 60238 Figure13 |
Sinuo can supply grand range of gauges, including lamp gauges, plug and socket-outlet gauges, etc. Our gauges are made of high quality die steel, anti-corrosion, wear-resistant and high accuracy, which can ensure our gauges pass the third party calibration.
