IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment
  • name
  • name
  • name
  • name

IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2211
Applied Standard:
IEC60335-2-24
Applied Clauses:
Clause 21.101
Drop Height:
50mm
Bearing Weight:
100KG
Test Times:
0-9999 Times
Platform Size:
≥(L)1250mmX(W)850mm
Wooden Platform:
30mm Simulated Floor
Support Plate:
18mm Composite Board
Highlight:

Refrigeration Appliances Drop Testing Equipment

,

IEC60335-2-24 Drop Testing Equipment

Product Description

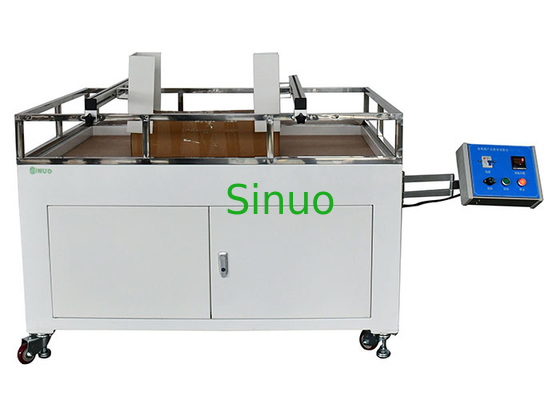

IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment



Equipment introduction:



This drop test machine meets the requirements of IEC60335-2-24 clause 21.101,etc.

It is used for repeating drop strength resistance test for various types of electrical appliance. The test times can be preset; it will automatically stop when the test times reaches to the setting value. It is easy to operate. The test sample is placed on a horizontal wooden plate, drop it from 50mm to the hard wooden plate for 50 times.



Technical Parameters:



Project Specification
Power supply AC230V 50Hz power 2kw or match client's local power supply requirements
Bearing weight 100kg
Drop height 50mm
Test times 0-9999 times, can be preset
Platform size ≥(L)1250mmX(W)850mm
Guardrail Hard chromium plating, steel structure
Wooden platform 30mm simulated floor
Support plate 18mm composite board
Sample fixture Adjustable left and right, front and back



IEC60335-2-24 Electrical Refrigeration Appliances 50mm Drop Testing Equipment 0
