Vacuum Cleaners Overrunning Bump Against Threshold Doorpost Test Equipment IEC 60312

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1714
Control Method:
PLC Control
Test Station:
One
Test Bench Size:
2500×800×1500mm
Threshold Distance:
1000mm
Doorpost Distance:
2000mm
Running Speed:
550mm/s
Applied Standard:
IEC 60312-1
Applied Clause:
Clause 6.7
Highlight:

IEC 60312 Doorpost Test Equipment

,

Vacuum Cleaners Doorpost Test Equipment

Product Description

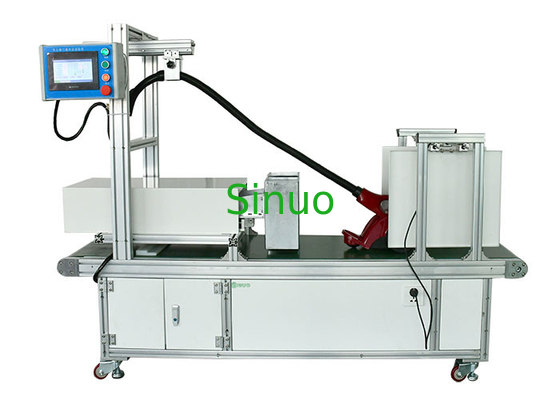

IEC 60312 Vacuum Cleaners Overrunning and Bump Against Threshold and Doorpost Test Equipment



Standards & Clauses:



This bump testing equipment meets the requirements of IEC 60312-1 clause 6.7, figure 14 and 15.

It is used to assess the vacuum cleaner's ability to resist bump when passing through a threshold or hitting a doorpost. A total of 500 cycle tests are performed to evaluate the running life and bump resistance of the vacuum cleaner. At the same time, the durability of the vacuum cleaner's current-carrying hose was also tested. It is a high-performance quality inspection tool for vacuum cleaners.



Equipment Features:



The test threshold and doorpost are designed according to the standard drawing requirements. There is a threshold barrier at 1M distance to the vacumm cleaner on the running table, and the impact doorpost is set at 2M. The servo traction motor + wear-resistant elastic rubber belt drive system is adopted. The machine is equipped with a vacuum cleaner dust tube fixture. The clamp fixing mechanism and the running guide system are made of low-friction stainless steel, which is durable and smooth. The control system adopts the operation mode of Mitsubishi PLC+Taiwan WEINVIEW touch screen. The test equipment can control the power on and off of the vacuum cleaner, and the power on and off time is adjustable. The walking speed and the number of tests can be set. When the test is completed, it will automatically stop and give an alarm. Even if the power is cut off, the current test times will be retained, and the remaining tests will continue to be completed after the call.



Technical Parameters:



Input Power Match client's local power supply requirements
Control Method PLC control, touch screen operation
Station One (can be customized)
Test bench size 2500×800×1500mm
Threshold distance 1000mm
Doorpost distance 2000mm
Running speed 550mm/s, the relative travel distance of the vacuum cleaner is greater than 0.5m, and the travel speed is greater than 0.5m/s adjustable
Counting range 0-99999
Drive mechanism The motor pulley drive mode, which has the characteristics of stable operation and long service life
Clamping mechanism The special fixed fixture can be fastened and clamped easily and conveniently. (The actual fixture is subject to the standard sample provided by the customer)



Test Obstacles:



A threshold made from polymide 6 or of wood of equivalent hardness, with cross-sectional dimensions according to Figure 14, positioned at rigt angles t the centre line of the test surface at a distance of 1m beyond the start position of the cleaner (see Figure 15).



Vacuum Cleaners Overrunning Bump Against Threshold Doorpost Test Equipment IEC 60312 0



A doorpost made from sheet steel, with dimensions according to Figure 15, positioned at either side of the centre line at a distance of 2m beyond the start position of the cleaner.



Vacuum Cleaners Overrunning Bump Against Threshold Doorpost Test Equipment IEC 60312 1
