| Control Method: | PLC Control | Drive Mode: | Motor Drive |
|---|---|---|---|
| Test Speed: | 30 Times /min, Adjustable | Abrasion Stroke: | 2.45-10cm, Adjustable |
| Abrasion Angle: | 45° With Horizontal Plane | Load Weight: | 2Lb(907.2g) |
| Test Times: | 0-999999 Times, Can Be Preset | Product Name: | Nonstick Pan Coating Abrasion Resistance Tester |
| High Light: | Abrasion Resistance Appliance Testing Equipment,2Lb Electrical Appliance Testing Equipment |
||

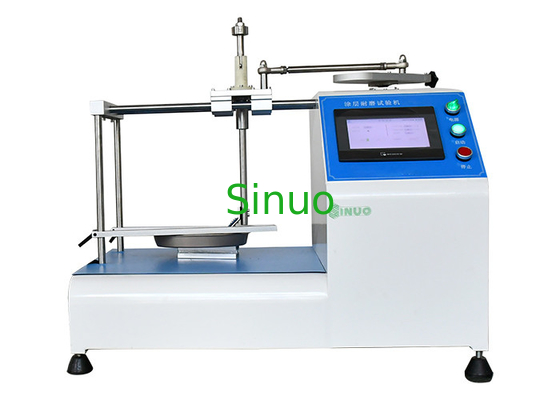

Non-stick Coating Anti-scrath Property Testing Euquipment for Non-stick Pans
Product Overview:
This product is customized according to customer requirements and is a professional equipment dedicated to wear resistance testing of non-stick pan coatings. It can test the round or square non-stick pans, which size is less than 400*400mm.
Technical Parameters:
| Input Power | Match client's local power supply requirements |
| Control Method | PLC control, touch screen operation |
| Station | One (can be customized) |
| Drive Mode | Motor |
| Test Speed | 30 times /min, adjustable |
| Abrasion Stroke | 2.45-10cm, adjustable |
| Test Times | 0-999999, can be preset |
| Loading Weight | 2Lb(907.2g) |
Working Principle:
The working component with the scouring pad is parallel to the inner coating surface of the non-stick pan. Use a weight to apply 2Lb of gravity to the working component to make it fully contact the coating surface, and put a certain amount of test liquid in the pan ( According to the standards), the friction head is driven by the motor to do reciprocating motion to achieve the purpose of testing the wear resistance of the non-stick pan coating.
