Wire Frame 200mm Dull Black Painted Wooden Sphere Device IEC 60335-2-23
  • name
  • name
  • name
  • name

Wire Frame 200mm Dull Black Painted Wooden Sphere Device IEC 60335-2-23

MOQ: 1
Price: Customized
Standard Packaging: Carton Box
Delivery Period: 5 Days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 100 Sets Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1120
Wire Fram Diameter:
Ф200 Mm
Wire Fram Height:
110 Mm
Wires Diameter:
Ф1.5±0.5 Mm
Wires Quantity:
32 Pieces
Applied Standard:
IEC 60335-2-23
Applied Figure:
Figure 101
Highlight:

Fig. 101 Wooden Sphere device

,

IEC 60335-2-23 Wooden Sphere device

Product Description

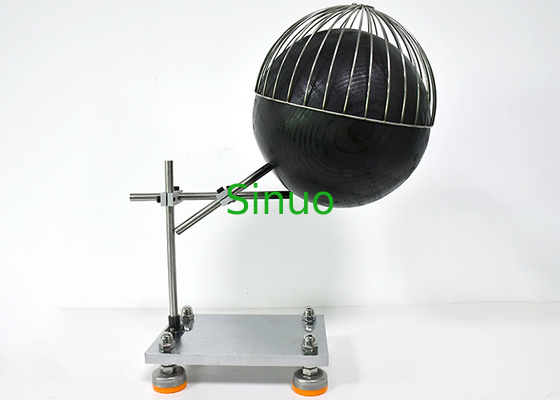

IEC 60335-2-23 Wire Frame and 200mm Wooden Sphere for Helmet-type Hairdryer Normal Operation Testing



Product overview:



This wire frame and wooden sphere device meets the requirements of IEC60335 -2- 23 clause 3.1.9, figure 101.

A dull black-painted wooden sphere with the diameter of 200mm, and a wire frame consisting of 32 equally spaced wires φ1.5mm±0.5mm.



Technical Characteristics:



Applied Standards & Clauses IEC60335 -2- 23 clause 3.1.9, figure 101
Wire Fram Diameter Ф200 mm
Wire Fram Height 110 mm
Wire Fram Top Hole Diameter Ф18 mm
Wires Diameter Ф1.5±0.5 mm
Wires Quantity 32 pieces
Wooden Sphere Diameter Ф200 mm
Wooden Sphere Color Black-painted


How to process the normal operation test for Helmet-type hairdryers? (Extracted from IEC 60335-2-23:2012 clause 3.1.9)



Helmet-type hairdryers are operated with the axis of the hood inclinded at an angle of 60° to the horizontal or the maximum angle allowed by the construction if this is less. A dull black-painted wooden sphere, 200mm in diameter, is placed in the hood so that its centre coincides with the axis of the hood, the shortest distance between the sphere and the air-outlet grille being 50mm.



Hairdryers having a flexible hood attachment are operated with the hood attachment placed over the wire frame of Figure 101, the frame being positioned over the wooden sphere.



Note 101 Helmet-type hairdryers that are supported by the head are operated as hairdryers having a flexible hood attachment.



Wire Frame 200mm Dull Black Painted Wooden Sphere Device IEC 60335-2-23 0

Wire Frame 200mm Dull Black Painted Wooden Sphere Device IEC 60335-2-23 1
