Standard: | IEC 60335-2-24 | Clause: | 22.116 |
---|---|---|---|
Puch Mass: | 75g±5g | Tip Angle: | 60°±2° |
Material: | Tungsten Carbide | Shape: | Conical |
High Light: | ac hipot test equipment,glow wire test equipment |

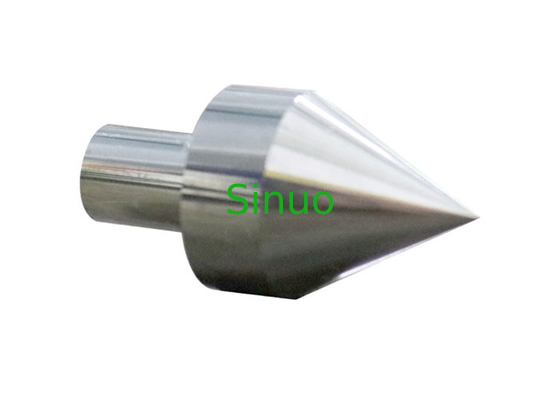

IEC60335-2-24 Clause 22.116 75g Test Punch with 60° Conical Tungsten Carbide Tip
Standards & Clauses:
Conforms to IEC60335-2-24 clause 22.116, IEC 60598-2-3 clause3.6.5, IEC 60335-2-6 clause 22.120 and etc.
Samples and Restrictions:
Accessible glass panels of household appliances, electrical accessories, lamps, etc.
Application:
It is used for the shattering test of accessible glass panels.
Test Process:
The sample under test is brolen by means of a test punch having a head with a mass of 75 g ±5 g and a conical tungsten carbide tip with an angle of 60°±2°. The punch shall be positioned approximately 13 mm in from the longest edge of the glass at the midpoint of that edge. The punch is them hit by a hammer so that the glass breaks.
Structure:
Item | Parameters |
Mass | 75g ± 5g |
Tip angle | 60 ° ± 2 ° |
Tip shape | Conical |
Material | Tungsten carbide |
