UL1598 UL1993 Water Spray Test Apparatus 5 Psi For Lamps Manual Control

UL1598 UL1993 Water Spray Test Apparatus 5 Psi For Lamps Manual Control
UL1598 UL1993 Water Spray Test Apparatus 5 Psi For Lamps Manual Control UL1598 UL1993 Water Spray Test Apparatus 5 Psi For Lamps Manual Control UL1598 UL1993 Water Spray Test Apparatus 5 Psi For Lamps Manual Control UL1598 UL1993 Water Spray Test Apparatus 5 Psi For Lamps Manual Control

Large Image :  UL1598 UL1993 Water Spray Test Apparatus 5 Psi For Lamps Manual Control

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN4420
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets Per Month
Detailed Product Description
Spreay Heads: 3 Pieces Water Pressure: 34.5Kpa (5 Psi)
Lower Nozzle Angle: 45° Up Control Method: Method
Rack Material: Aluminum Profile Testing Standards: UL1993, UL60507, ANSI Z21.58, Etc.
High Light:

rain test chamber

,

iec test equipment

UL Water Spray Test Apparatus 5 PSI Water Ingress Testing Equipment for Lamps



Overview:



The testing equipment is used to verify the protective performance of the enclosure for self-ballasted lamps and lamp adapters under UL water spray environment.



The water ingress testing equipment applys spray test to test sample by controlling the water supply pressure and the distance between the nozzle and sample.



Standards compliant:



UL1993 “Self-Ballasted Lamps and Lamp Adapters” clause 24, figure 24.1 and 24.2
UL60507-ENGL 1999 figure 38.1 and 38.2
ANSI Z21.10.3-2004
ANSI Z21.58 Figure 10/Figure 11
CSA4.3-2004
UL1598, UL153, UL154B, UL1703, UL8750, UL1741, UL514B, UL1278, UL1571, etc.



Structure:

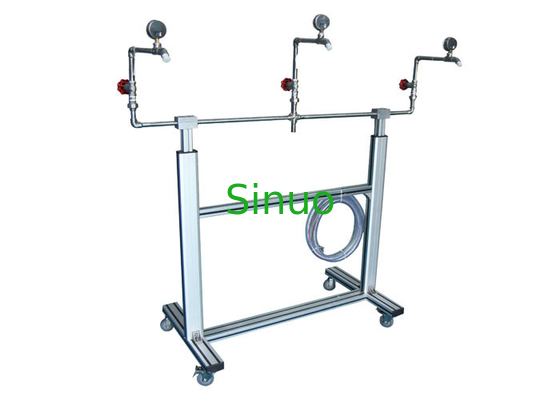

The device consists of a 3 UL spray heads, 3 pressure gauges, 3 control valves and a water supply pipe rack.

UL1598 UL1993 Water Spray Test Apparatus 5 Psi For Lamps Manual Control 0



Technical parameters:



Control & Operation Manual
Spreay Heads 3 pieces (or 4 pieces optional, with one lower nozzle), manufactured according to UL1993figure 24.1
Spray Heads Positions The positions of spray heads can be adjusted up or down through the water spray pipe rack, the spacing is made according to UL1993 Figure 24.2
Lower Nozzle Angle (Optional) 45° up
Water Pressure At each head at approximately 34.5Kpa (5 psi), each spray head has a corresponding press gauge, total water flow pressure is 50-150Kpa
Distance between the center Nozzle and the Device Approximately 1.4m (55 inches)
Rack Material: high-grade aluminum profile with casters
