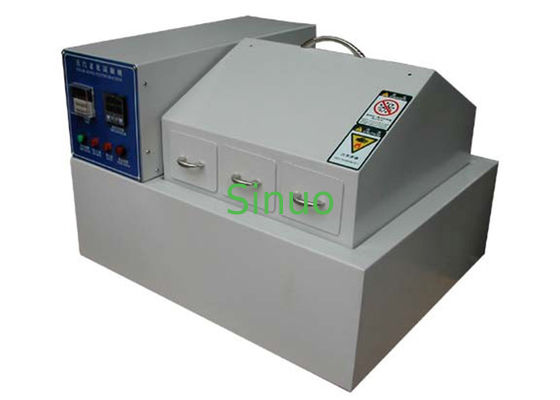

IEC 60898-1 MCB Rusting Resistance Air Saturated Test Chamber
| Applied Standard: | IEC 60898-1 Clause 9.14 | Control Method: | Microcomputer Temp. Controller |
| Sensor Type: | Platinum Temp. Sensor (PT-100) | Chamber Material: | SUS#316 Full Argon Welding |
| Test Space: | W250mm×D200mm×H200mm | Temperature: | Saturated Water Vapor Temp. (20±5)℃; |
| Timer Type: | 0.1～999.9s/m/h | Response Time: | Up To 99% Within ≤1min |
| High Light: | emc test systems,electromagnetic testing services |
||
IEC 60898-1 MCB Rusting Resistance Air Saturated Test Chamber
Product Information:
This air saturated test chamber is required by IEC 60898-1:2015 clause 9.16, IEC 61009-1:2012, etc. It is used to process further rusting in saturated water vapor for plugs, screws and other metal components after being soaked in ammonium chloride water.
Chamber Features:
1. Adopt microcomputer temperature controller. +, M. +. Control LED digital display.
2. Adopt platinum temperature sensor (PT-100), and temperature is precisely controllable with resolution ability 0.1℃.
3. Water vapor test target can be set and controlled, steam test operation timing can be set and controlled.
4. Inner chamber stainless steel material: SUS#316 full argon welding, and outer chamber: SUS#316 material.
5. Fully automatically control.
Technical Parameters:
Input power: AC220V±10%, 50/60Hz;
Test space: W250mm×D200mm×H200mm;
Test saturated water vapor temperature: (20±5)℃;
Humidity indication: LCD temperature and humidity meter displays the current ambient temperature and humidity;
Timer: 0.1～999.9s/m/h continuous timing and setting, there will be a buzzer sound when the timer reaches the set value;
Response Time: up to 99% within ≤1min;
Box material: SUB304 stainless steel.
