IEC60898-1 Clause 9.13 MCB Mechanical 200g Impact Test Equipment
  • name
  • name
  • name
  • name

IEC60898-1 Clause 9.13 MCB Mechanical 200g Impact Test Equipment

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 1 set per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2507
Sample Range:
Panel/rail/recessed/panel Mount Type
Impact Head:
R10 Polyamide, Hardness HR100
Applied Standard:
IEC60898-1
Applied Clause:
Clause 9.13
Impact Mass:
150±1g(200g)
Bracket Mass:
10±1Kg
Highlight:

emc test systems

,

electromagnetic testing services

Product Description



IEC60898-1 Clause 9.13 MCB Mechanical 200g Impact Test Equipment





Standards & Clauses:



The test equipment conforms to the standard requirements of IEC 60898-1:2015 Electrical accessories-Circuit-breakers for overcurrent protection for household and similar installations-Part 1: Circuit-breakers for a.c.operation clause 9.13 Mechanical stresses test, IEC 61009-1:2012 and etc.





Test Purpose:



It is used for switch sockets, surface-mounted installation boxes, contactors, molded case AC air circuit breakers, etc., to verify the impact resistance of exposed parts that may be subjected to mechanical impact during normal use.





Test Principle:



According to the test Eha: the pendulum, the impact element is released freely at a certain height through a 1-meter pendulum, hits the sample at the lowest point in the vertical direction, and through the transformation of gravitational potential energy into kinetic energy, the purpose of impact testing on the sample is achieved.





Structure:



This equipment, also referred to as a low-energy pendulum impact testing apparatus, features a floor-mounted design that requires no fixed installation. The sample mounting fixture offers multi-directional adjustability, including vertical, horizontal, and depth adjustments. Additionally, it allows rotation around both an axis perpendicular to the mounting plate and the vertical axis, providing five degrees of freedom for precise positioning.



The pendulum arm is equipped with an adjustable release angle mechanism via the pivot point, enabling targeted impacts at various positions on the front and sides of the sample. This flexible design fully meets the impact testing requirements for the majority of similar products in the industry.





Technical Parameters:



Model SN2507
Applicable Sample Range Panel mount, rail mount, recessed, panel mount circuit breaker
Impact element head R10 polyamide, hardness HR100
Impact element mass (equivalent mass) 150±1g(200g)
Mounting Bracket quality 10±1Kg
Mounting brackets Can rotate ±90° around the mounting plate, the mounting plate can rotate ±90° around the vertical axis, X, Y, Z three axes can be adjusted
Position regulation Bracket X-100～100mm, Y-100～100mm, Z-100～100mm stroke adjustable
Swing pendulum A steel pendulum with a length of 1000±1mm, a mass of 100±1g, a material outer diameter of 9 mm, and a wall thickness of 0.5 mm
Impact height 0-500mm, scale display (corresponding angle conversion)
Circuit breaker mounting plate 175*175*8 laminated board
Dimension 860mm×650mm×2000mm
Weight About 140 KG

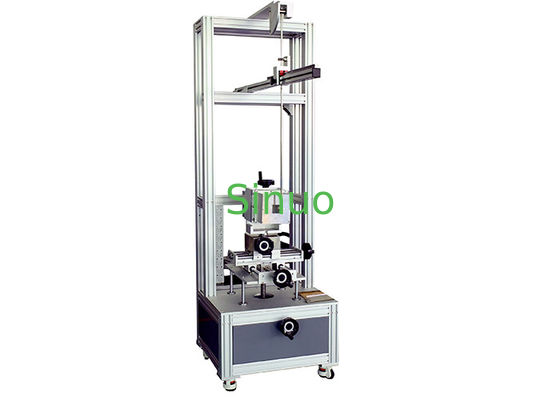

Sample Fixture Display:

IEC60898-1 Clause 9.13 MCB Mechanical 200g Impact Test Equipment 0

Tags:

EMC test system,

emc testing laboratory,
