Stepless Adjustment Led Testing Equipment Semi - Luminaires Bending Movement Test
  • name
  • name
  • name
  • name

Stepless Adjustment Led Testing Equipment Semi - Luminaires Bending Movement Test

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: L/C, , T/T, Western Union, MoneyGram
Supply Capacity: 20 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN995
Force Range:
0-100N
Force Resolution:
0.1N
Measureable Length:
0-400mm
Adjustment Method:
Stepless Adjustment
Highlight:

torque testing machine

,

luminaire testing equipment

Product Description

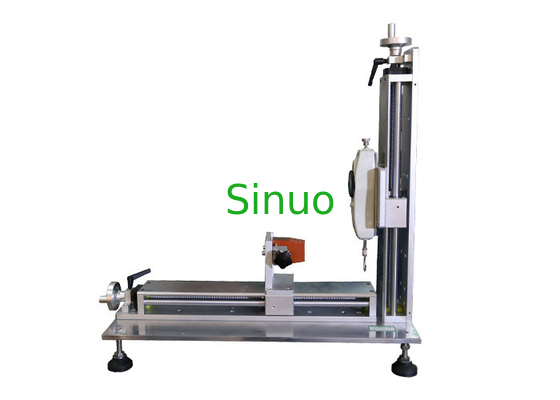

IEC 60598-1 Semi-luminaires Bending Movement Stepless Adjustment Test Apparatus With 100N Force Gauge



Standards & Clauses:



IEC 62560-2015 “Self ballasted LED –lamps for general lighting services by voltage>50V-Safety specifications” clause 6.2, table 2

IEC61199 -2014 “single-capped fluorescent lamps –Safety specifications” clause A2.1

IEC 60598-1:2014 “Luminaries-Part1: General requirements and tests” clause 4.14.2



Samples and Restrictions:



Semi-luminaires intended for connection to Edison screw or bayonet lampholders



Application:



It is used to test the bending moment effect of the semi-luminaires on the lampholders, in order to prevent the damage of the lampholders from being damaged by excessive bending moment.



Test Principle:



Using a push-pull force gauge to connect with a semi-luminaire through a flexible cord, the force of the free bending of the luminaire is measured, and the actual bending moment value is calculated by multiplying the force arm, compared with the standard requirement.



Structure:



Manual testing, simple and convenient



Technical Parameters:



Digital display force gauge Digital display, force range: 0-100N, resolution 0.1N
Measurable length of semi-luminaires 0-400mm
Test requirements

Please refer to following table:

Stepless Adjustment Led Testing Equipment Semi - Luminaires Bending Movement Test 0
Adjustment method Stepless adjustment, the screw slider is driven by adjusting handwheel
Extended function

Fluorescent lamp lamphoders axial force test (G5 15N,G13 30N), conforms to IEC60598.1: 2014 clause 4.4.4 i)






Stepless Adjustment Led Testing Equipment Semi - Luminaires Bending Movement Test 1Stepless Adjustment Led Testing Equipment Semi - Luminaires Bending Movement Test 2

Tags:

luminaire test equipment,

Lighting test equipment,

led light meter
