| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, , T/T, Western Union, MoneyGram |
| Supply Capacity: | 20 sets per month |
IEC 60598-1 Screwed Glands Torque Test Apparatus with 1.5-30N.m Digital Spanner
Standards & Clauses:
IEC 60598-1:2014 “Luminaries-Part1: General requirements and tests” clause 4.12.5
Samples and Restrictions:
Glands of screw thread ≦ M33
Application:
Test the mechanical strength of the screwed glands
Test Principle:
Screwed gland is fitted with a cylindrical metal rod, one end is fixed, then test torque is applied on the other end by the spanner.
Structure:
Manual testing, simple and convenient
Technical Parameters:

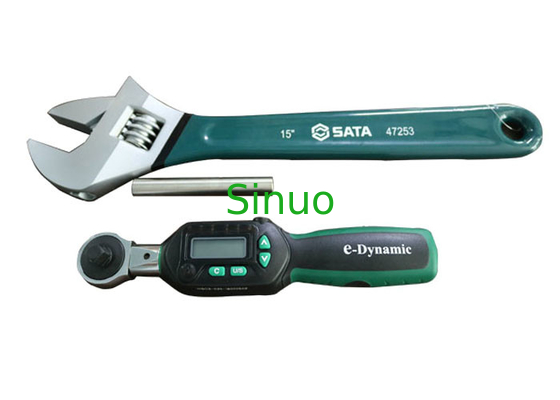

| Digital torque spanner | Digital display, torque range: 1.5-30N.m, opening size 40mm, accuracy 3% |
| Metal rod | Diameter: Ф5, Ф6, Ф7, Ф8, Ф9, Ф10, Ф11, Ф12, Ф13, Ф14, Ф15, Ф16, Ф17, Ф18, Ф19, Ф20, Ф21, Ф22, Ф23, Ф24, Ф25, Ф26, Ф27, Ф28, Ф29, Ф30mm,one of each, length:100mm |
| Torque Applied Time | 1min |
| Use Method |
Screwed gland is fitted with a cylindrical metal rod, one end is fixed by the adjustable wrench, the other end of the screwed gland is tightened by the digital spanner, then test torque (2.5 N.m,3.25 N.m,5 N.m,6.25 N.m,7.5 N.m, 10N.m)is applied to screwed gland by rotating the spanner, hold for 1 min, the gland should not be damaged after the test.
|
