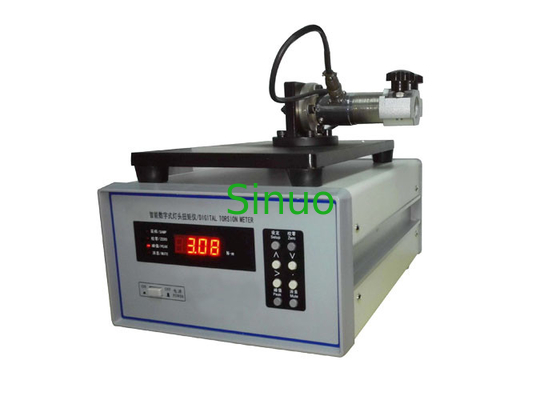

IEC 60598-1 Screwed Luminaires Lampholders Torque Test Apparatus 0-10N.m LCD Display
| Torque Display: | Digital Display | Torque Range: | 0-10N.m |
| Test Samples: | Lampholders | Test Time: | 1 Min |
| High Light: | torque testing machine,led light testing equipment |
||
IEC 60598-1 Screwed Luminaires Lampholders Torque Test Apparatus
Standards & Clauses:
IEC 60598-1:2014 “Luminaries-Part1: General requirements and tests” clause 4.12.4
Samples and Restrictions:
E10, E14and B15 (including candle type), E27, E26, B22, E40 lampholders
Application:
To test the influence of the rotational torque on the lampholders during the replacement of the light source.
Test Principle:
Adopt electronic torque sensor, the torque value can be measured and displayed in real time, operator manually rotates the light source, test torque is applied for 1 min in a clockwise and anti-clockwise direction, then check the displayed torque indication value on the LCD.
Structure:
Digital display, with a clamp for lampholders
Power Supply:
AC220V,50Hz
Technical Parameters:
| Torque Display | Digital display, torque range: 0-10N.m, with maximum torque hold function, upper limit alarm can be set |
| Lampholders Clamp | The lampholder is fixed with the clamp, operator directly rotates the opposite light source to measure the positive and negative torque of the lampholder |
| Extended Function |
Can be used to process torque test for lamp caps, test lampholders can be equipped, E27, E26, B22d, E14, E10, E40, B15 test lampholders are optional.
|
