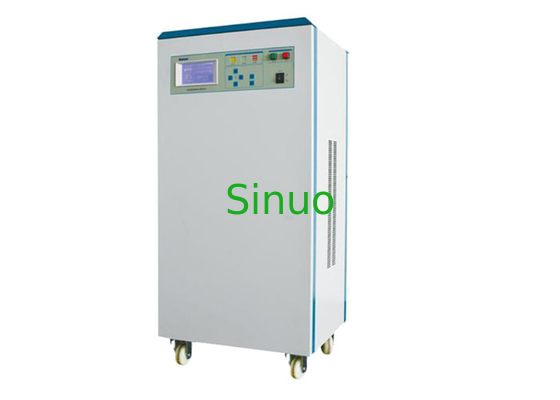

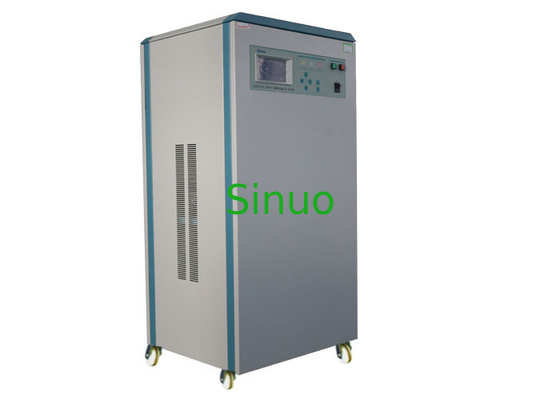

Electrical Safety Comprehensive AC Hipot Test Equipment , Hipot Insulation Tester
Standards & Clauses:
IEC60884-1:2013 “Plugs and socket-outlets for household and similar purposes- Part1: General requirements”
IEC60335-1:2016 “Household and similar electrical appliances-Safety-Part1: General requirements”
IEC60950-1:2013 “Information technology equipment-Safety-Part1: General requirements”
IEC60065:2014 “Audio, video and similar electronic apparatus-Safety requirements”
Samples and Restrictions:
Household appliances, electrical accessories, lamps, etc.
Application:
Various types of home appliance manufacturers, as well as institutions that conduct home appliance safety testing and certification, research institutes
Test Contents:
AC Hipot test, insulation resistance test, ground resistance test, leakage current test, run power and low voltage start performance test
Structure:
Floor-standing
Technical Parameters:
| AC Hipot test | |||
| Booster rated output capacity | 500VA (5000V/100mA), short circuit current is greater than 200mA | ||
| Output voltage waveform, distortion, adjustment rate | Sine wave, <3% (pure resistance,5000V/1mA), <3% (from empty load to full load) | ||
| Output voltage setting | Range | 500～5000V | |
| Resolution, accuracy | 5V,±(3%×setting+10V) | ||
| Frequency setting | Range, accuracy | 50Hz/60Hz, ±0.1%×setting | |
| Alarming limits setting | Current upper-limit | 0.10~99.99mA | |
| Current lower-limit | 0.00~10.00mA | ||
| Compensation current setting | Range | 0.00~10.00mA, automatic testing, compensation can be set to ON/OFF | |
| Time setting | Range | 1~999s | |
| Ramp up time range | 1~100s | ||
| Accuracy | ±(0.1%×setting+1count) | ||
| Breakdown current alarm | Range, accuracy | 0.10~99.99mA, ±(3%×reading+3counts) | |
| Insulation Resistance test | |||
| Rated output capacity | 2VA(1000V/2mA) | ||
| Output voltage regulation, output voltage ripple | <3%(From no load to full load), <1% |
||
| Output voltage setting | Range, accuracy | DC 500V or 1000V, ±(3%×setting+3counts) | |
| Alarming limits setting | Resistance upper-limit range | 0.0~99.9 MΩ,100~2000MΩ(If upper-limit is set to 0, it will not make adjudgment for upper limit) | |
| Resistance lower-limit range | 0.3~99.9 MΩ, 100~2000MΩ | ||
| Time setting | Range, accuracy | 1~999s, ±(0.1%×setting+1count) | |
| Insulation resistance measurement | Range | 0.0~99.9 MΩ, 100~2000 MΩ | |
| Accuracy |
≤200MΩ: ±(3%×reading+3counts) >200MΩ:±(8%×reading+8counts) |
||
| Ground Bond Resistance test | |||
| No load output voltage | <12V | ||
| Output current setting | Range, accuracy | 3~30A, ±(3%×setting+0.2A) | |
| Current frequency setting | Range, accuracy | Sine waveform 50Hz/60Hz, ±0.1%×setting | |
| Test time setting | Range | 1~999s | |
| Accuracy | ±(0.1%×setting+1count) | ||
| Result display mode | Ground resistance or voltage | ||
| Ground resistance display mode | |||
| Alarming limits setting | Resistance upper-limit range |
3A ≤ output current ≤ 10A:10~600 mΩ 11A ≤ output current ≤ 25A:10~300 mΩ 26A ≤ output current ≤ 30A:10~200 mΩ |
|
| Resistance lower-limit range | 0~100 mΩ | ||
| Compensation resistance setting | Range | 0~200 mΩ, automatic testing, compensation can be set to ON/OFF | |
| Ground bond resistance measurement | Range, accuracy | 10~600 mΩ, ±(3%×reading+ 5counts) | |
| Ground voltage display mode | |||
| Alarming limits setting | Voltage upper-limit range | 30~7500 mV | |
| Voltage lower-limit range | 0~3000 mV | ||
| Compensation voltage setting | Range | 0~1000 mV, automatic testing, compensation can be set to ON/OFF | |
| Ground bond resistance measurement | Range, accuracy | 10~7500 mV, ±(3%×reading+ 50mV) | |
| Leakage Current test | |||
| Leakage current test type setting | Single phase load, static/dynamic leakage current | ||
| MD network selection | Standard IEC 60990 figure 4 network; other test network optional | ||
| Alarming limits Setting | Current upper-limit range | 0.050~9.999mA | |
| Current lower-limit range | 0.000~5.000mA | ||
| Leakage current compensation setting | Range | 0.000~1.000mA, automatic testing, compensation can be set to ON/OFF | |
| Time test setting | Range, accuracy | 1~999s, ±(0.1%×setting+1count) | |
| Leakage current measurement | Range | 0.050~9.999mA | |
| Accuracy |
DC~10kHz: ± (3%×reading+0.010mA) 10 kHz ~1MHz: ± (5%×reading+0.050mA) |
||
| Output voltage measurement | Range, accuracy | 60~280V(phase voltage), ±(0.5%×reading+2counts) | |
| Run Power Only forAN9651S(F)/AN9651F(F)/AN9651B(F) | |||
| Alarming limits setting | Power upper-limit range | 6~6000W | |
| Power lower-limit range | 0~6000W | ||
| Test time setting | Range, accuracy | 1~999s, ±(0.1%×setting+1count) | |
| Voltage measurement | Range, accuracy | 60~280V (phase voltage), ±(0.5%×reading+2counts) | |
| Current measurement | Range, accuracy | 0.030~3.999A, 4.00~25.00A, ±(0.5%×reading+2counts) | |
| Active power measurement | Range, accuracy |
30.0~199.9W: ±(0.5%×reading+5W), 200~6000W(or2000W): ±(0.5%×reading+30W) |
|
| Power factor measurement | Range, accuracy | 0.10~1.00, ±(2%×reading+2 counts) | |
| Low voltage start test | |||
| Alarming limits setting | Current upper-limit range | 0.30~25.00A | |
| Current lower-limit range | 0.00~25.00A | ||
| Test time setting | Range, accuracy | 1~999s, ±(0.1%×setting +0.05s) | |
| Voltage measurement | Range, accuracy | 60~280V (phase voltage), ±(0.5%×reading+2counts) | |
| Current measurement | Range, accuracy | 0.030~3.999A, 4.00~25.00A, ±(0.5%×reading+2counts) | |
| Power supply for UUT | |||
| SN2212B Built-in isolation transformer | |||
| Isolation transformer input voltage, frequency | Determined based on input voltage and frequency | ||
| Isolation transformer output voltage ratio | Leakage current test | The output voltage is 1.06 times the input voltage | |
| Run power test | The output voltage is 1.00 times the input voltage | ||
| Low voltage start test | The output voltage is 0.85 times the input voltage | ||
| Isolation transformer capacity | Single phase load rated capacity 6000VA | ||
| Isolation transformer voltage regulation | 3% (from no load to full load) | ||
| Overcurrent protection | Maximum current is 30A, automatically cut off the isolated power supply after 5s overcurrent | ||
| SN2212S, SN2212F Built-in variable frequency power supply | |||
| Max. output capacity | 5000VA | ||
| Output voltage distortion | 1% @ 47~63Hz | ||
| Output voltage stability | 1% | ||
| Programmed output voltage | Voltage range | 0~300V | |
| Voltage accuracy | 0.5%RD+0.5%F.S. | ||
| Programmed output frequency | Frequency Range | 47~63Hz | |
| Frequency stability | 0.1% | ||
| Output maximum current | 0~150V file | 27A | |
| 0~300V file | 14A | ||
| SN2212S Configured IN-Pad | |||
| Processor | ARM926 core, 400MHz frequency | ||
| Operating system | Windows CE | ||
| Software | ESRS-Pad special software for safety test | ||
| Display | 10.4” TFT color LCD | ||
| Operation method | Input through touch screen, support input through USB interface mouse and keyboard | ||
| Storage | 50MB FLASH, user can choose large capacity SD memory card | ||
| External Interface | 2-way RS232 interface, 2-way USB interface, CAN interface, DC12V power interface | ||
| Mounting brackets | 3D, full angle, display stand | ||
| Bar code scanner | One barcode scanner with an RS232 interface defaulted | ||
| Interface function | |||
| Remote control interface | Standard, standard foot switch (start) | ||
| Alarm light interface | Standard, standard three-color warning light (test, qualified, warning) | ||
| Communication Interface | Standard RSA32, optional RS485, network port, GPIB, etc. | ||
| Variable frequency power control interface | Optional | ||
| Switch interface | Optional, start, stop, test, pass, alarm switch output | ||
| Printer interface | Optional, support for dot matrix printers and micro printers | ||
| General specification | |||
| Verification and calibration environment | 23 ° C ± 5 ° C, (45 ~ 75)% RH, less dust | ||
| Use environment | 0 ° C ± 40 ° C, (5 ~ 90)% RH, less dust | ||
| Storage environment | -10 ° C ~ 55 ° C, (5 ~ 95)% RH, less dust | ||
| System power | 220V±10%, 50Hz±5%, 10A | ||
| System power consumption | Maximum 1000VA (excluding the operating power consumption of the tested product) | ||
| System weight (without packaging) | About 80kg | ||
| Dimensions (mm, without packaging) | SN2212S | 483(W)x 600(D)x 1355(H) | |
| SN2212F | 483(W)x 600(D)x 1355(H) | ||
| SN2212B | 530(W)x 460(D)x 1105(H) | ||
|
|
