| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, , T/T, Western Union, MoneyGram |
| Supply Capacity: | 20 sets per month |

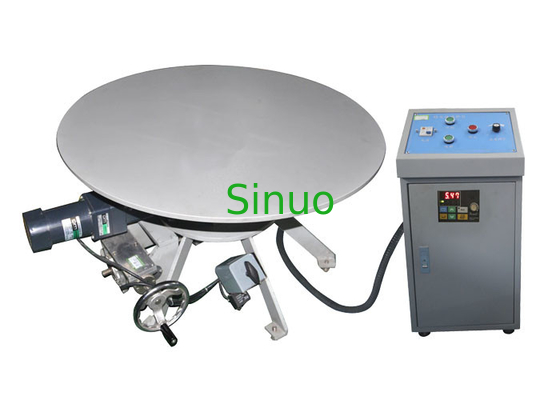

0-30° Inclined Plane Electrical Appliance Stability Mechanical Hazards Testing Equipment
Standards & Clauses:
IEC60335-1:2016 “Household and similar electrical appliances-Safety-Part1:General requirements” clause 20.1
Samples and Restrictions:
Household appliances such as microwave ovens, ovens, induction cookers, refrigerators, washing machines
Application:
It simulates a surface such as the floor or table, on where the appliances intended to be used, shall have adequate stability.
Test Principle:
The appliance, not connected to the supply mains, is placed in any normal position of use on the inclined plane at a certain angle to the horizontal. The countertop of the inclined plane is rotated by rotating mechanism, so as to verify the sample’s stability.
Structure:
The device consists of a countertop and an angle adjustment device
Equipment dimensions: approx.: 1000 × 1000 × 800 (mm) W × D × H
Equipment weight: 150kg
Power supply:
AC220V±10%/50-60Hz, 0.75KW or match client's local power supply requirements
Technical Parameters:
| Test Station | Single |
| Electrical Control Method | Button control |
| Drive Mode | Motor driven |
| Countertop Diameter | Ф600mm,Ф800mm,Ф1000mm are optional |
| Countertop Material | High quality sprayed steel plate |
| Angle Adjustment Range | 0-30°, adjustable |
| Rotation Mode | Manual or automatic 1r/min, optional |
| Bearing Capacity | 100kg |
|
|
