IEC 60335-2 Enclosure Protection Testing Using Test Probe 14
  • name
  • name
  • name
  • name

IEC 60335-2 Enclosure Protection Testing Using Test Probe 14

MOQ: 1
Price: Customized
Standard Packaging: Exporting package
Delivery Period: 3 Days
Payment Method: T/T
Supply Capacity: 100 sets per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate(Cost Additional )
Model Number
SN2210-10
Test Standard:
IEC 60335-2-82, IEC 61032
Test Sample:
Easily Accessible Enclosure Live Parts Or Mechanical Parts
Pin Width:
3mm
Pin Length:
80mm
Handle Material:
Nylon
Probe Material:
Stainless Steel
Highlight:

IEC 60335-2 Testing Probe

,

Enclosure Protection Testing Probe

Product Description

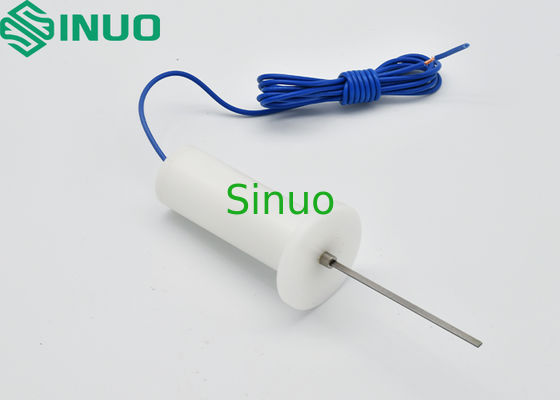

IEC 60335-2 Enclosure Protection Testing Using Test Probe 14







Product information:



Standard:Conforms to IEC 60335-2-82, test probe 14 IEC 61032 etc.

Application:It is used to verify the protection against access to hazardous live parts of socket-outlets through shutters. It is equipped with the handle which is made of nylon.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).



Technical Parameters:



Name Test probe 14
Long pin width (mm) 3+0.03 0
Long pin height (mm) 1+0.015 0
Long pin length (mm) 80±0.5
Chamfer edge (mm) R0.2±0.05





IEC 60335-2 Enclosure Protection Testing Using Test Probe 14 0

IEC 60335-2 Enclosure Protection Testing Using Test Probe 14 1
