JISC8714 Portable Lithium Ion Secondary Cells Internal Short Circuit Tester

MOQ:	1
Price:	Customized
Standard Packaging:	Plywood case
Delivery Period:	30 Days
Payment Method:	T/T
Supply Capacity:	5 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin

Sinuo

Brand Name

Sinuo

Certification

Calibration Certificate (Cost Additional)

Model Number

SN5513

Temperature Range:

0 ~ 100℃

Temperature Fluctuation:

±2.0℃

Analytical Accuracy:

Heating Rate:

Average 3℃/min

Cooling Rate:

Average 1℃/min

Force Range:

1kg-200kg

Squeeze Stroke:

0~300MM

Force Accuracy:

≤0.5％

Speed Accuracy:

Low Temperature:

Highlight:

JISC8714 Lithium Ion Tester

JISC8714 Cells Internal Short Circuit Tester

Lithium Ion Cells Short Circuit Tester

Product Description

JISC8714 Portable Lithium Ion Secondary Cells Internal Short Circuit Tester

This battery forced internal short-circuit tester is an integral testing equipment to performance a comprehensive test for temperature, voltage, internal-short circuit, which is applicable for battery cell safety test.

Compliance Standards: JISC8714:2007 5.5, IEC 62133-2: 2017 clause 7.3.9, and etc.

Temperature Control Chamber Specifications

Parameter	Specification
Temperature range	0 ~ 100℃
Analytical accuracy	0.1℃
Temperature fluctuation	±2.0℃
Low temperature	0℃
Heating rate	Average 3℃/min (from 0℃ to 100℃, non-linear no-load)
Cooling rate	Average 1℃/min (from 100℃ to 0℃, non-linear no-load)
Heater	Fin type heat pipe shaped stainless steel electric heater
Air supply circulation system	Convection air circulation system
Safety devices	Over-temperature alarm, MCCB overload protection, etc.
Insulation material	Rigid polyurethane foam + high-efficiency compressed glass wool
Thermostat	TEMMI controller imported from Korea
Inner chamber size	W400H500D500mm
Inner chamber material	Mirror stainless steel plate, bottom reinforcement
External chamber size	W1200 X H2000 X D1000MM
External chamber material	Cold rolled steel paint treatment

Force Test System Specifications

Parameter	Specification
Force range	1kg-200kg
Unit	Kg/N/Lb
Squeeze stroke	0~300MM
Force display accuracy	1N
Resolution	1/10,000
Force accuracy	≤0.5％
Speed display accuracy	1mm
Driven type	Servo motor drive
Squeeze speed	The squeeze speed is adjustable. The speed of the first contact point during squeeze can be set to 1.5cm/s; the test process speed range is 0.01~900MM/MIN (adjustable, 0.1~1.5CM/S)
Squeeze head size	10105mm or 10102mm
Squeeze head material	One piece each of nitrile rubber (NBR, side 10mm, thickness 2mm) and acrylic (acryl, side 5mm, thickness 2mm)
Squeeze workbench material	Aluminum alloy plate or 316 stainless steel plate, corrosion resistant
Suitable Battery size	300 X 300 X 300mm(WXDXH)
Visual window	300 X 300mm explosion-proof glass
Air supply outlet	There are two air supply vents on the left side of the box.
Lighting	There is a lighting lamp inside the box, which can illuminate the entire testing space
Voltage collection range	0-100V, acquisition frequency 100HZ/second
Voltage resolution	0.1mv
Voltage acquisition frequency	100/s
Deformation range	0-300MM
Max. test plane	300X300MM
Power supply	220V 50HZ
Power	2.0KW
Machine weight	Approx.350KG

Voltage Acquisition System

Control method: Through PLC control, the voltage can be set, voltage changes can be recorded, and control signals can be output; Voltage rise control: When the voltage rises from low to high, a specific voltage value is set. When the voltage reaches the set value, the system outputs a signal to control the extruder. Voltage drop control: When the voltage drops from the highest value to 0V, a voltage value can be set. When the voltage drops to the set value, the system outputs a signal to control the extrusion testing machine.
Data collection and curves: After the voltage acquisition system is started, the system will collect the voltage between the positive and negative poles of the battery under test at a collection frequency of 110 times per second. At the same time, the main screen of the system displays the voltage change curve from time to time. When the voltage reaches the system set value, the test stops and saves data and graphics. Data is exported via USB to generate EXCELL file format.
Control System: PLC touch screen menu-based operation, the data collection frequency can reach 100 times/second, and the test pressure, pressure pause time, measured pressure, battery voltage, battery temperature, pressure drop speed, etc. can be set through PLC programming.

Temperature Control System

Temperature and humidity controller: programmable temperature and humidity controller, 7-inch color touch screen temperature and humidity controller

Feature	Specification
Size	Appearance size: 203x148x35mm (length x width x thickness), Installation opening size: 190x135mm (length x width)
Display	TFT LCD (LED backlight), 7-inch 260,000-color LCD screen and touch screen, resolution 800 * 480
Control method	Program: 120 groups of programs, each group has 100 segments. You can set all programs to cycle, part to cycle, program connection, program end action, and standby action. Fixed value: The running time can be set.
Sensor input	Sensor type: temperature PT100, humidity PT100; Input the maximum error: temperature (±0.2℃), humidity (±1%RH); Measuring range: temperature -100.0~300.0℃, humidity: 0.0~100.0%RH; Optional functions: 1-5V, 4-20mA, T-type, K-type and other sensor inputs
Analog output	Voltage pulse (SSR): 2 points (temperature, humidity), DC 24V, minimum pulse width 5ms; Optional functions: 4-20mA output, 1-5V output
Contact input	Input type: DI1 ~ DI10: Each error message name can be changed, and Chinese input can be entered. Pictures can be set to display fault information. Contact usage: Maximum DC 24V/10mA. Can be set to run/stop/forward/reverse action, DI delay action time can also be set.
Contact output	Number of contacts: maximum 16 contacts, 4 normally open and normally closed contacts; Contact capacity: Normally open contact: Maximum 30V DC/5A, 250V AC/5A; Normally closed contact: 30V DC/5A maximum, 250V AC/5A; Output types: IS signal: 10 points, user signal: 1 point, TS signal: 6 points, alarm signal: 8 points, T signal: 8 points, H signal: 4 points, temperature and humidity operating signal: 2 points, temperature and Humidity operation rise/maintain/fall: 6 points, drainage signal: 1 point, error signal: 1 point, end signal: 1 point, 1REF signal: 1 point, 2REF signal: 1 point, EVT signal: 4 points
USB function	Connect U disk to record test data in real time, export test history data, and import pictures
Power supply	Power supply: Rated voltage: DC 24V/500mA; Lithium battery: for internal real-time clock (minimum 10 years)
Communication	Communication type: RS232, maximum communication speed 115200bps, (optional RS485, maximum communication distance 1.2km, up to 99 units can be connected). Control method: The controller output signal passes through the SSR solid state relay to achieve high-precision non-contact switch control

Extrusion Principle

Pressure is applied through a hydraulic cylinder in a vise or cylindrical piston, causing the single cell or unit cell under inspection to be squeezed between two planes. Continue squeezing until the squeezing force reaches approximately 13kN and immediately decompress. The squeezing test checks the safety performance of the battery. After the test, the battery should not catch fire or explode.

Test Purpose

This machine is suitable for simulating the conditions in which batteries of various types are subjected to crushing objects when used, transported, stored or disposed of household waste. The battery is qualified if it does not explode or catch fire.

Main Features

Feature	Description
Control System	PLC control, accurate data, simple operation
Air pressure balancing system	Double holes for air supply to ensure the air pressure balance in the test chamber
Exhaust system	The long-axis motor drives the aluminum alloy fan blades, which can discharge the exhaust gas generated by the test to the outdoors at any time
Security system	Stainless steel hinges and tight door locks ensure that the door will not be blown open during strong airflow
Humanized design	1) The height of the extrusion table from the ground is about 800MM, which is convenient for test operations. 2) Double-layer tempered glass window ensures safety while testers can observe the test conditions through the window 3) Built-in environmentally friendly and energy-saving lights illuminate the entire testing space for clear observation.
Voltage acquisition system	It can collect the voltage of the test battery in real time. After the collection is completed, the test data can be exported via USB to generate EXCELL file format, or it can be directly exported to BMP file format to facilitate data statistics and transmission.
Transmission system	The servo motor cooperates with the ball screw and linear guide to move the extrusion tooling up and down.
Base	Equipped with 4 universal pulleys and 4 positioning foot cups, which can be moved freely or positioned

Product Images

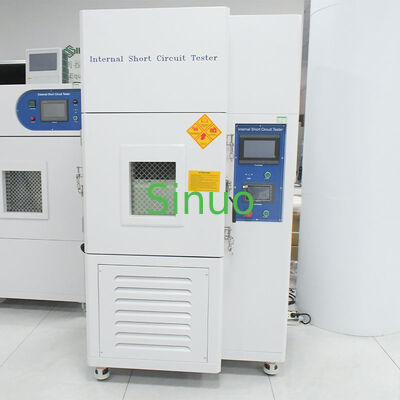

IEC 62133-2 Battery Internal Short Circuit Tester side view

IEC 62133-2 Battery Internal Short Circuit Tester control panel
