IEC60238 Cl. 16.4 Figure 6 Lampholders Mechanical Strength Torque Test Apparatus

MOQ: 1
Price: Customized
Standard Packaging: Plywood case
Delivery Period: 15 Days
Payment Method: T/T
Supply Capacity: 50 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2805
Applied Standard:
IEC 60238: 2016
Applied Clause:
Clause 16.2 And 16.4
Lamp Holder Gauge:
E14a X1; E27a X1; E40a X1
Weight:
4Nx1; 6Nx1; 14Nx1; 16Nx1; 40Nx1;
Warranty:
1 Year
Brand:
Sinuo
Highlight:

IEC60238 Torque Test Apparatus

,

Lampholders Mechanical Strength Torque Test Apparatus

,

Figure 6 Strength Torque Test Apparatus

Product Description
IEC60238 Cl. 16.4 Figure 6 Lampholders Mechanical Strength Torque Test Apparatus

Developed per IEC 60238:2016+A1:2017+A2:2020 Clauses 16.2, 16.4 and Figure 6, this torque testing equipment verifies the mechanical performance and service life of lamp holders.

IEC 60238 Torque Test Apparatus diagram showing equipment setup and components
Test Procedure
  1. Replacing Lamp Holder Gauge: Choose the matching gauge based on the lamp base type. Loosen the fixing screws on the device, take off the existing lamp holder gauge and install the new one for testing.
  2. Securing the Test Sample: Mount the lamp base onto the dedicated fixture. Loosen the fixture screws and adjust its vertical position to align the lamp holder gauge with the center of the lamp base. Once positioned correctly, tighten the screws to lock the fixture in place.
  3. Conducting the Test: Wrap the steel wire rope around the torque disc. If the lamp holder is assembled onto the lamp base via clockwise rotation, wrap the rope clockwise; otherwise, wrap it counterclockwise. Attach specified weights and apply torque continuously for 1 minute.
Standard Torque Values
  • 0.3 Nm for E5 lamp holders
  • 0.3 Nm for E10 lamp holders
  • 0.5 Nm for E14 candle lamp holders with threaded entry fixing
  • 1.2 Nm for E14 candle lamp holders with outer shell clamping
  • 1.2 Nm for other E14 lamp holders
  • 2 Nm for E27 lamp holders
  • 4 Nm for E40 lamp holders
Weight Configuration
Specification Torque Weight Configuration
E5 0.3 Nm 6N
E10 0.3 Nm 6N
E14 (Threaded Fixing) 0.5 Nm 6N+4N
E14 (Outer Shell Fixing) 1.2 Nm 6N+4N+14N
E14 (Other) 1.2 Nm 6N+4N+14N
E27 2 Nm 6N+4N+14N+16N
E40 4 Nm 6N+4N+14N+16N+40N

Perform the test in two separate runs. First, clamp the sample by its outer casing. Second, secure it via the threaded inlet, dome or backplate, as applicable to the lamp holder design.

Upon completion of testing, the sample must not sustain any damage or defects that would affect its normal operation.

Equipment Images

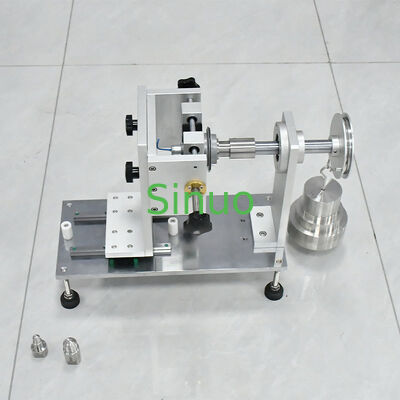

Torque test apparatus setup showing lamp holder gauge and clamping mechanism
Close-up view of torque disc and weight application system
Standard Configuration
  • Weight: 4N hook weight x1, 6N through-hole weight x1, 14N through-hole weight x1, 16N through-hole weight x1, 40N through-hole weight x1
  • Lamp holder gauge: E14a x1; E27a x1; E40a x1
  • Weights: 4Nx1, 6Nx1, 14Nx1, 16Nx1, 40Nx1
Important Notices
  • This device must not be subjected to impact, especially the gauge area
  • After use, apply protective oil to the gauge to prevent rust
  • Remove all weights after completing tests
  • Required environmental conditions: Temperature 5-35℃, Humidity 45-75%
Tags:

luminaire test equipment,

Lighting test equipment,

led light meter
