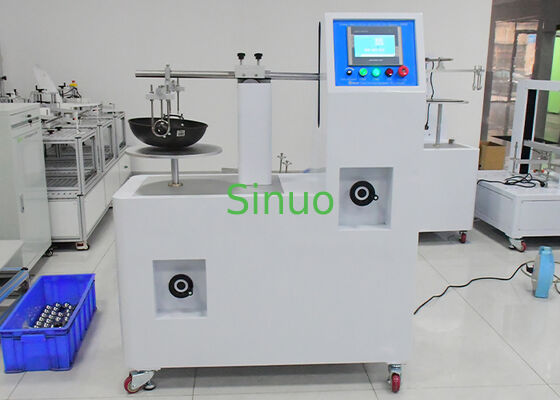

TZS 683/2022 Cookware Handle Fatigue And Strength Test Apparatus Cookware Testing Machine
  • name
  • name
  • name
  • name

TZS 683/2022 Cookware Handle Fatigue And Strength Test Apparatus Cookware Testing Machine

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood case
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 10 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1604C
Applicable Standard:
TZS 683/2022
Test Speed:
1 – 30 Times/min
Rubber Plate:
5 Mm Thickness
Height Adjustment:
0 – 300 Mm
Eccentric Distance:
40 ± 2 Mm
Sample Fixture:
Single-handle Jig
Counter:
0–999,999 Cycles
Load Combinations:
0.225 Kg To 36 Kg
Product Description
TZS 683/2022 Cookware Handle Fatigue And Strength Test Apparatus

Professional cookware testing machine designed for handle fatigue resistance and strength testing in compliance with international standards.

Product Information

The design of the handle fatigue resistance and strength test apparatus complies with Clause 10.9 and Annex D of TZS 683/2022 and ES 573:2021 standards.

Applied Standards

TZS 683/2022 - 10.9 Test of Strength of Handle Attachment:

A quantity of mass equal to 2.25 times the capacity of the utensil (in kg) is placed inside. The handle is attached to the lever apparatus and lifted off/lowered onto a flat surface once per minute for 24 hours using a rotating cam. After testing, the utensil is inspected for rupture failure, separation, or leakage.

TZS 683/2022 Cookware Handle Fatigue And Strength Test Apparatus Cookware Testing Machine 0

TZS 683/2022 Annex D - Fatigue Test:

Apparatus continuously raises and lowers loaded cookware from a level surface once per minute via its handle. The cam provides smooth graduation from rest to fully raised position (40±2 mm) and back in 60±1 seconds. After 1500 cycles, cookware is examined for permanent visible distortion or weakening of handle assemblies.

TZS 683/2022 Cookware Handle Fatigue And Strength Test Apparatus Cookware Testing Machine 1 TZS 683/2022 Cookware Handle Fatigue And Strength Test Apparatus Cookware Testing Machine 2 TZS 683/2022 Cookware Handle Fatigue And Strength Test Apparatus Cookware Testing Machine 3
Key Features
  • Fully compliant with TZS 683/2022 Clause 10.9 & Annex D and ES 573:2021
  • Simulates real-life cookware handle fatigue testing conditions
  • Accurate handle strength test machine with adjustable speed control
  • High-repeatability durability testing equipment for cookware
  • Intelligent counter with auto-stop & alarm function
  • Supports both single-handle and double-handle cookware testing
  • Designed for industrial lab testing equipment applications
Test Principle

The equipment simulates repeated lifting and lowering of cookware under load using a rotating cam mechanism, reproducing real-world usage conditions.

Technical Parameters
Parameter Specification
Power Supply AC 220V, 50Hz
Test Station 1 station
Drive Mode Electric + eccentric wheel mechanism
Eccentric Distance 40 ± 2 mm
Test Speed 1-30 times/min (adjustable)
Rubber Plate 5 mm thickness, hardness 50 ±10 Shore
Height Adjustment 0-300 mm manual adjustment
Fixture Single-handle jig + double-handle hook
Test Load Metal spheres Φ40±10 mm, total 36 kg
Load Combinations 0.225 kg to 36 kg (multiple configurations)
Counter 0-999,999 cycles, auto stop + alarm
Frequently Asked Questions
Q1: Can this machine test different types of cookware?
Yes, it supports both single-handle and double-handle cookware with dedicated fixtures.
Q2: Is the test speed adjustable?
Yes, the lifting and lowering speed can be adjusted from 1 to 30 cycles per minute.
Q3: Does it meet international standards?
Absolutely, it complies with TZS 683/2022 and ES 573:2021, widely recognized in cookware testing.
TZS 683/2022 Cookware Handle Fatigue And Strength Test Apparatus Cookware Testing Machine 4 TZS 683/2022 Cookware Handle Fatigue And Strength Test Apparatus Cookware Testing Machine 5 TZS 683/2022 Cookware Handle Fatigue And Strength Test Apparatus Cookware Testing Machine 6
