Three Station Plug Insulation Sleeve Abrasion Test Apparatus Pressure Load 4N IEC 60884
Product information:
Standard: IEC 60884-1:2022 clause 24.8 figure 31, BS1363-1: 2012 figure 9.
Specimen and limitations: Insulating sleeve for plug pin.
Test purpose: Suitable for testing the wear resistance of plug insulation sleeves
Test principle: The motor drives the eccentric mechanism to achieve reciprocating scraping of the latch sheath.
Structure:
It consists of a horizontally placed crossbeam and a linearly moving clamp base. The end of the crossbeam is equipped with a U-shaped head bent from a short steel wire with a diameter of 1mm (two points of the U-shape are vertically fixed on the crossbeam). The bottom edge of the U-shaped steel wire is 6mm straight working part. The 6mm straight bottom edge of the U-shaped steel wire is pressed on the latch insulation sleeve, and the motor drives the fixture seat equipped with the latch to reciprocate back and forth, so that the steel wire rubs against the latch insulation sample for testing.

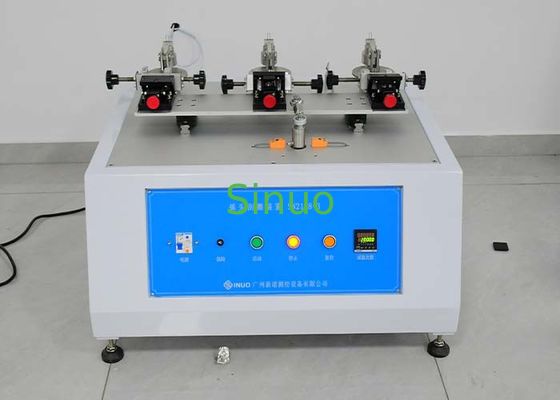

The equipment adopts a 3-station synchronous structure, as shown below:
Technical parameters:
| Test station | Three stations, synchronous |
| Drive mode | Electrical mode |
| Abrasion rate |
30 times/minute, one for each of going and returning |
| Test times | 0-999999 times, adjustable |
| Pressure load | 4N |
| Scraping wire |
Φ1mm, effective length 6mm |
| Test stroke | More than 1 meter, fixed stroke |
| Angle adjustment mechanism |
The fixture is equipped with an angle adjustment mechanism, matching European standard internal eight-shaped pins and conventional straight pins. It is equipped with a 10° inclination gauge. After the specimen is installed, the gauge can be used to directly calibrate the 10° position.
|
| Power supply | AC220V±10%/50-60Hz |
| Equipment size | WDH=850X760X600mm |
| Equipment weight | About 130kg |
