UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 1 set per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SNQC1012B
Control Method:
PLC Control
Test Station:
Single Station
Load Weight:
0.7-109Kg
Height Range:
250~800mm
Rotation Speed:
5~15 Rpm
Test Times:
0-999999times
Mounting Plate:
300mm*250mm
Maximum Distance:
120mm
Highlight:

Mechanical Stress Wire Damage Testing Device

,

Screw Terminals Wire Damage Testing Device

Product Description

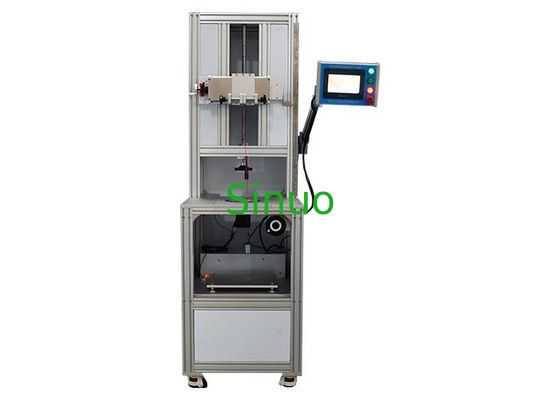

UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test





Product Information:



This testing device conforms to UL486A-B clause 9.3.2.1, clause 9.3.2.3, clause 9.3.2.4 and table 26 and figure 6, IEC60947-1, etc.

Specimens and restrictions: Screw terminals, threadless terminals and connectors.

Test purpose: To examine whether the screw terminals and threadless terminals can withstand the mechanical stresses that occur during normal use. It is mainly used to judge whether the design and structure of the thread clamping terminal block meet the requirements of not excessively damaging the wire when clamping the wire.

Testing principle: Using guide rail screw structure. The number of tests can be preset before use. When the set value is reached, the machine will automatically stop and sound an alarm signal.



UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test 0







Technical Parameters:



Control and operation PLC control, touch screen operation
Test station Single station
Drive Servo drive
Fixture

1. The centering locking fixture meets the requirements of terminal blocks with length, width and height of 60*70*90mm respectively. The fixture has the characteristics of quick replacement.

2. Equipped with additional mounting plate, size 300mm*250mm, which can be used interchangeably with the centering locking clamp.

3. The maximum distance between the mounting plate and the rotation center is 120mm, adjustable
Rotation speed

5~15 rpm, can be preset on the touch screen,

(UL486A-B requires 9 rpm)
Rotation diameter Adopting double-hole rotating disc, diameter ø75mm
Number of tests/time

1. 0-999999, it will automatically stop when the preset number of tests is reached.

2. The test time can be switched to 0-9999min according to different standard requirements, and can be preset. It will automatically stop when the preset test time is reached.
Load weight

A set of weights can achieve 0.7, 0.9, 1.4, 2.3, 3.6, 4.5, 6.8, 8.2, 11.4, 13.6, 18.2, 22.7, 25, 27.2, 34.1, 36.3, 40.9, 45.4, 49.9, 54.5, 70.4, 81.7, 93.1, 109.

Unit: Kg, weight hook is included in the total weight
Height adjustment range 250~800mm, adjustable, with scale indicator
Height adjustment method Manual adjustment
Busing diameter UL486A-B Configuration: 6.4, 9.5, 12.7, 14.3, 15.8, 19.1, 22.2, 25.4, 28.6, 31.8, 34.9, 38.1, 44.5, 50.8, 54mm

Sample specification selection

(see attached table)

 UL486A-B Table 26
Weight lifting mechanism Equipped with electric lifting mechanism, large-size weight tray to prevent falling


The busing and mass configuring is as following table:



UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test 1



UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test 2

UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test 3

UL486A-B Table 26 Wire Damage Testing Device Screw Terminals Mechanical Stress Test 4
