IEC 60309-1 Charging Interface Cable Bending Testing Machine Vehicle Testing Equipment

IEC 60309-1 Charging Interface Cable Bending Testing Machine Vehicle Testing Equipment

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood Case
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 10 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SNQC1009
Drive Mode:
Servo Motor
Clamping Method:
Mechanical Clamping
Control Method:
PLC Control
Test Station:
One Station
Flexing Rate:
0-60 Cycles/min
Flexing Angle:
0-360°, Adjustable
Flexing Cycles:
0~999999 Can Be Preset
Load Weights:
20N,25N,50N,75N,100N,140N
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Plywood Case
Delivery Time:
30 days
Payment Terms:
T/T
Supply Ability:
10 Sets Per Month
High Light:

IEC 60309-1 Vehicle Testing Equipment

,

Charging Interface Vehicle Testing Equipment

Product Description



IEC 60309-1 Charging Interface Cable Bending Testing Machine Vehicle Testing Equipment



Product Overview:



Standard: according to IEC62196-1:2014 clause 7.11 and clause 7.15, IEC60309-1:2012 clause 24.4.

Samples and restrictions: Electric vehicle charging interfaces, industrial plugs, sockets and couplers.

Application: Used to test the bending connection part of the "mechanical strength" part of the power connection cable of the charging vehicle plug and socket.

Test principle: The servo motor is used to drive the turntable to drive the work piece to swing left and right, and the machine will automatically stop when the number of times is reached.

Structure and features: The equipment is driven by a servo motor, and large-size specimens are installed on aluminum plates, which can make the swing axis coincide with the point where the cord enters the instrument as much as possible when clamping the specimen, thereby achieving the minimum lateral displacement of the cord and load.

Usage environment: Power supply: AC220V±10%/50-60Hz, power 3KW.



Technical Parameters:



Equipment dimensions Approx.: W1000*D800*H1600mm
Equipment weight 150kg
Test station Single station
Electrical control method PLC intelligent integrated control, 7-inch human-machine touch interface operation
Drive mode Servo motor drive
Specimen clamping method Mechanical clamping, adjustable clamping point position
Bending angle 0-360° adjustable (default ±45°)
Bending rate 0-60 times/min, can be preset
Bending frequency 0~999999 can be preset, default is 20000 times
Load weight 20N,25N,50N,75N,100N,140N
Load power supply External connection, optional load cabinet with adjustable voltage between conductors 0-250V and adjustable current AC 0-400A
Test judgment Judgment based on the signal given by whether the current is conducting or not

Common Faults and Treatments:

No. Fault Reason Treatment





1

Turn on the POWER switch, but the indicator light not turn on The external power supply is not connected Please connect to the external power supply
The fuse is broken Find out the reason and change the fuse.
The indicator light damaged Replace the light





2

Turn on the POWER switch, Touch screen not work The internal DC24V power supply is in problem Replace the DC24V power supply
Touchscreen damaged Replace the touchscreen
3 Touch screen no response Connection to PLC loose Reconnect
Touchscreen damaged Replace the touchscreen
4 Load power no power supply Load socket damaged Replace the socket
The fuse is broken Change the fuse





5





Press down Start button, but the fixture do not work.

The display value and preset value of test times are the same Press Count Cleared
The E-STOP button is not reset Release E-STOP button
There is foreign object in the machine, the machinery is stuck Remove the foreign object
It is not under auto test mode Press Start button
Connection to motor loosen Reconnect
Not in starting position Homing
6 Motor rotates but the manipulator does not rotate Check whether the motor output shaft connector is loose Re-connect
Check whether the drive belt is broken or too loose Replace the drive belt
7 Noise Swivel speed low or too high Reset the speed
Connection to motor loosen Reconnect

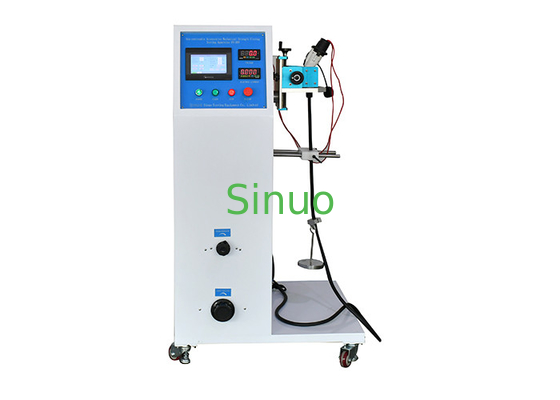

IEC 60309-1 Charging Interface Cable Bending Testing Machine Vehicle Testing Equipment 0

IEC 60309-1 Charging Interface Cable Bending Testing Machine Vehicle Testing Equipment 1
