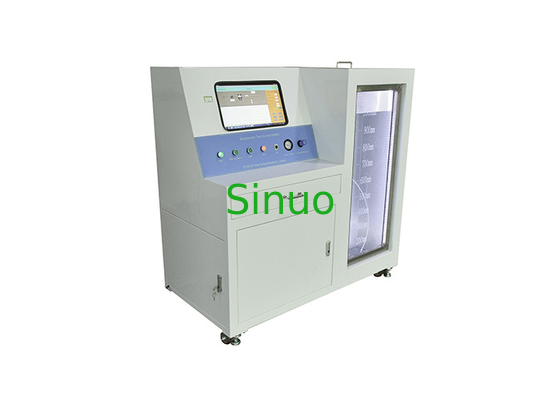

IEC 62196 Automatic Air Tightness Detection Testing Machine Overpressure Testing 10L
| Applied standard: | IEC 62196-3-1 | Applied clause: | Clause 101.6 |
| Test station: | Single Station | Test pressure: | 1.0-10.0Bar |
| Display accuracy: | 0.1 Bar | Test medium: | Dry Air |
| Driving air pressure: | 0.2-0.8MPa | Volume size: | Less Than 10L |
| High Light: | 10L Air Tightness Detection Testing Machine,Overpressure Air Tightness Detection Testing Machine |
||
IEC 62196 Automatic Air Tightness Detection Testing Machine Overpressure Testing 10L
Product Information:
Standard: According to IEC62196-3-1 Clause 101.6 Overpressure Test.
Samples and restrictions: Test sealing performance test for volumes below 10L.
Application: Used to perform pressure leakage tests on sealing-required appliances containing liquid coolants.
Test principle: According to the different pressures of the sample, the system's booster pump outputs high pressure to verify the pressure of the sample.
Structure and features: It consists of an electrical control system, a pressure control system and a water tank. The work pieces are manually installed and connected.
Usage environment:
Power supply: AC220V±10%/50-60Hz
Air source: 0.5-0.8MPa compressed air
Place of use: atmospheric pressure 80~106kpa; ambient temperature 5~40°C; relative humidity (20~80) %RH; no violent shaking, vibration, no electromagnetic interference, no dust, no explosive and corrosive gases, good heat dissipation
Technical Parameters:
| Test station | Single station |
| Electrical control method | Computer intelligent control and operation |
| Test pressure | 1.0-10.0Bar, booster pump drive |
| Pressure control accuracy | +1% of the upper limit of the test pressure value, -1% of the lower limit |
| Display accuracy | 0.1 Bar |
| Test medium | Dry air |
| Pressure control method | Computer control |
| Boost rate | Adjustable, non-uniform linear |
| Compress time | 0-9999s can be set arbitrarily, with seconds as the timing unit, computer display |
| Test process | Boost-Pressure-Relieve Pressure |
| Driving air pressure | 0.2-0.8MPa |
| Volume size | Less than 10L |
| Water tank size | WDH=500×500×1000mm |
| Output Interface | ZG1/4 internal thread |
| Pressure curve display | Real-time display of data acquisition software |
| Test data storage | Reports and excel test forms can be saved |
| Computer | Intel i7 4 G memory (or above) 512G SSD,windows7 operating system and OFFICE processing software, with RS232 communication interface |
| Safety protection device | |
| Power supply | Leakage protection, overload and short circuit protection |
| Motor | Overload, short circuit protection |
