IEC 62368-1 Annex R Computer Controlled Restricted Short Circuit Test Machine

IEC 62368-1 Annex R Computer Controlled Restricted Short Circuit Test Machine

MOQ: 1
Price: Customized
Standard Packaging: Plywood Case
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2401
Complied Standard:
IEC 62368
Complied Clause:
Annex R
Test Range:
<25A
Test Mode:
AC And DC
Limit Current:
≥1500A (customizable)
Discharge Time:
5~100ms Can Be Set
Discharge Voltage:
Customizable
Test Time:
Test Time
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood Case
Delivery Time:
30 Days
Payment Terms:
T/T
Supply Ability:
20 Sets Per Month
High Light:

Restricted Short Circuit Test Machine

,

Computer Controlled Short Circuit Test Machine

Product Description

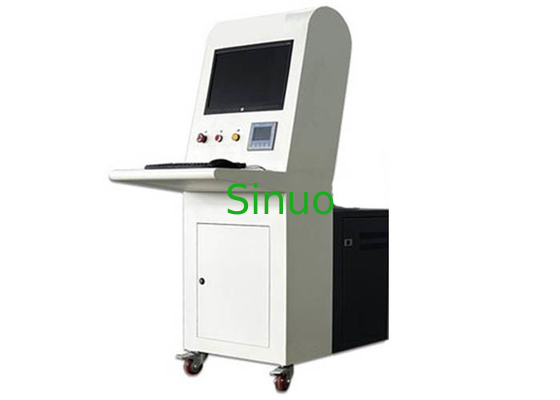

IEC 62368-1 Annex R Computer Controlled Restricted Short-Circuit Test Machine





Product Information:



This restricted short-circuit test machine is required by IEC62368-1:2018 clause 5.6.4.1&5.6.5.1, Annex R.

The restricted short circuit test device is used to test the protective grounding conductor and current protection circuit breaker 1500A. The purpose of this test machine is to verify that the protective connecting conductor used in the circuit protected by the device with a rated value not exceeding 25A is compatible with the fault current allowed by the overcurrent protection device, and to test the integrity of additional safety protection through such tests.

Test samples: audio, video, information and communication technology equipment.





Test principle:



The restricted short circuit test machine uses the energy storage device to realize the instantaneous high current test. The discharge time and initial voltage can be set. After the discharge is completed, it will automatically charge for the next round of test. During the test, the discharge current will be recorded to generate the current time curve.





Equipment features:



1. Large industrial computer.

2. Optional automatic current rise test, manual current rise test and impact quick break test, flexible and simple operation.

3. Real time display of output current and time results is intuitive;

4 Perfect over-current protection, arbitrary setting of target output current value, current upper limit and current withstand time.

5. With grounding detection function and zero return detection function, the test can be carried out after the grounding and zero return are determined, which is safe and reliable.

6. Approximation type current raising algorithm, when the set target output current is reached, the current tolerance timing will be automatic, and the motor will return to zero automatically after the timing is completed.

7. If the upper limit of the set output current is exceeded, the motor will automatically return to zero and give an audible and visual alarm.

8. Sophisticated anti-interference design of software and hardware, multiple anti-interference means, adapt to harsh electromagnetic environment.

9. It can be equipped with door interlock alarm, opening voltage verification interface, etc.





Features:



1. Control mode: industrial computer.

2. Test station: 1 station.

3. Test range:<25A.

4. Limit current: ≥ 1500A (customizable).

5. Discharge time: 5~100ms can be set.

6. Test mode: AC and DC switchable test.

7. Discharge voltage: can be set on computer according to customer requirements.

8. Test time: can be set on computer according to standard requirements.

9. Standard configuration: power supply DC power supply, over-current protection device, waveform curve oscilloscope provided by customers, configured with 2.5 square meters, 4 3m test lines.

10. Test function: discharge voltage and limit protection time can be set, with overvoltage and overcurrent protection function.

11. Safety protection: it has the function of abnormal shutdown alarm, and the connection is made of insulating materials.

12. Overall dimension: approx.: W800 × D600 × H1650mm.

13. Equipment power supply: AC220V 50Hz.
