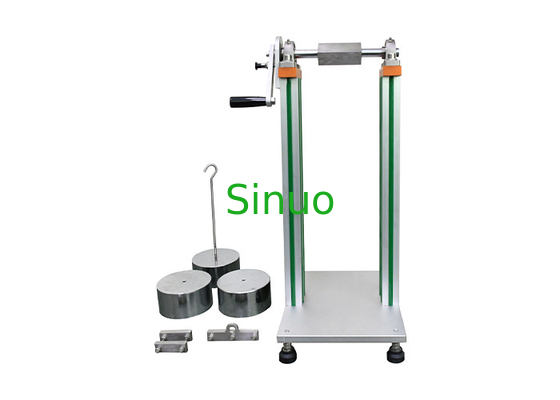

IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification
| Weights: | 1N*2, 50N*2, 50N*1 | Force of material foil: | 1N |
| Bracket material: | Aluminum Profile | Mandrel material: | Corrosion-resistance Metal |
| Rotating angle: | 230 O | Test force: | 150N±10N |
| Height: | 500mm | Warranty: | 1 Year |
| High Light: | IEC 60950-1 Metal Mandrel Test Apparatus,Tensile Strength Metal Mandrel Test Apparatus |
||
IEC 60950-1 Metal Mandrel Test Apparatus For Tensile Strength Verification
Product Information For Metal Mandrel Test Apparatus:
This test apparatus conforms to IEC 62368-1:2018 clause 5.4.4, IEC60950-1:2013 clause 2.10.5.8, Annex AA, figure 14~16, IEC60558-1 Fig6, etc. It is used for tensile and electrical strength verification for non-separable thin layer materials.
This test apparatus has the mechanical limits in the position of 0o and 230o to make sure the accuracy of the testing angle.
Technical Parameters For Metal Mandrel Test Apparatus:
| Applied Standard | IEC 62368-1 |
| Clause | 5.4.4 |
| Mandrel Material | Made of corrosion-resistance metal |
| Bracket Material | Aluminum profile |
| Weights | 1N*2,50N*2 (with through hole), 50N*1 (including the weight of hanging hook and clamping device for specimen) |
| Force of the two terminals of material foil | 1N (two sets of 1N weights, also the clamping device for metal foil) |
| Rotating angle of the mandrel | 230 o |
| Height of the mandrel to the bottom of the device | 500mm |
