ASTM D5132 Automotive Interior Materials Flammability Test Chamber
  • name
  • name
  • name
  • name

ASTM D5132 Automotive Interior Materials Flammability Test Chamber

MOQ: 1
Price: Negotiable
Standard Packaging: Plywood
Delivery Period: 20 Days
Payment Method: T/T
Supply Capacity: 10 Sets Per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN776
Inner Diameter:
Φ9.5±0.3mm
Cylinder Length:
100±10mm
Burning Time:
0-9999X0.1S
Test Distance:
19±1mm
Flame Height:
38mm
Metal Comb:
110mm
Test Temperature:
0-150°C
Operation Mode:
Button Operation
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Plywood
Delivery Time:
20 Days
Payment Terms:
T/T
Supply Ability:
10 Sets Per Month
High Light:

ASTM D5132 Flammability Test Chamber

,

Automotive Interior Materials Flammability Test Chamber

Product Description



ASTM D5132 Automotive Interior Materials Flammability Test Chamber



Standard For Automotive Interior Materials Flammability Test Chamber:



ISO3795-1989 “Road vehicles, and tractors and machinery for agriculture and forestry-Determination of burning behavior of interior materials”

ASTM D5132 “Standard Test Method for Horizontal Burning Rate of Polymeric Materials Used in Occupant Compartments of Motor Vehicles”



Application For Automotive Interior Materials Flammability Test Chamber:



Applicable to the evaluation of horizontal combustion characteristics of interior materials of automobiles (cars, multi-purpose passenger cars, trucks and buses)



Technical parameters For Automotive Interior Materials Flammability Test Chamber:



Control & Operation Mode



Electrical control, button operation (optional PLC control touch screen operation)


Burner Inner diameter Φ9.5±0.3mm, cylinder length 100±10mm
Gas Flow and Gas Source Type Liquefied petroleum gas, natural gas and coal gas can also be used
Combustion Chamber Made of stainless steel, with heat-resistant glass observation windows, with ventilation holes around and at the bottom, W×D×H=385mm×204mm×360mm
Burning/self-extinguishing Time 0-9999X0.1S
Distance from The Top of The Torch to The Sample 19±1mm
Flame Height 38mm, adjusted by flowmeter
Metal Comb The length is at least 110mm, and there are 7-8 smooth round teeth in every 25mm
Test Chamber Temperature 0-150°C, displayed by a thermometer
External Dimensions Electrically controlled fume hood and combustion chamber, black matt background, built-in lighting, with exhaust fan, overall dimensions: WDH=1150×600×1200mm, 180kg

Structure For Automotive Interior Materials Flammability Test Chamber:

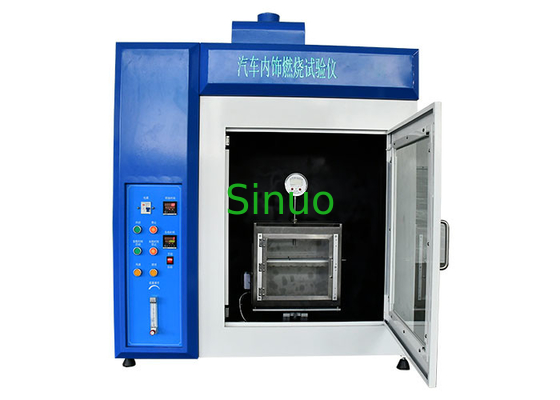

The testing machine is composed of a control chamber, a combustion chamber body, a combustion burner, a solenoid valve (flow meter), a high-pressure igniter, a thermometer, a signal control line, the upper and lower brackets of the sample, and a fume hood. The control box and the combustion chamber are made of stainless steel, beautiful appearance, smoke and gas corrosion resistance, and the control system has a high degree of automation, with automatic ignition, automatic air supply, automatic timing, automatic end of the test and other functions.

Use Environment For Automotive Interior Materials Flammability Test Chamber:

Power supply: single-phase AC220V±10%, 50/60Hz
Ambient temperature: 10℃～35℃ Relative humidity: 30%～90%

ASTM D5132 Automotive Interior Materials Flammability Test Chamber 0

ASTM D5132 Automotive Interior Materials Flammability Test Chamber 1

ASTM D5132 Automotive Interior Materials Flammability Test Chamber 2
