| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Plywood |
| Delivery Period: | 30 Days |
| Payment Method: | T/T |
| Supply Capacity: | 30 Sets Per Month |
UL60507 For Lamps Manual Control Water Spray Test Apparatus With 3 UL Spray Heads
Product Information For Water Spray Test Apparatus:
The testing equipment is used to verify the protective performance of the enclosure for self-ballasted lamps and lamp adapters under UL water spray environment.
The water ingress testing equipment apply spray test to test sample by controlling the water supply pressure and the distance between the nozzle and sample.
Standards Compliant For Water Spray Test Apparatus:
UL1993 “Self-Ballasted Lamps and Lamp Adapters” clause 24, figure 24.1 and 24.2
UL60507-ENGL 1999 figure 38.1 and 38.2
ANSI Z21.10.3-2004
ANSI Z21.58 Figure 10/Figure 11
CSA4.3-2004
UL1598, UL153, UL154B, UL1703, UL8750, UL1741, UL514B, UL1278, UL1571, etc.
Technical Parameters For Water Spray Test Apparatus:
| Control & Operation | Manual |
| Spray Heads | 3 pieces (or 4 pieces optional, with one lower nozzle), manufactured according to UL1993figure 24.1 |
| Spray Heads Positions | The positions of spray heads can be adjusted up or down through the water spray pipe rack, the spacing is made according to UL1993 Figure 24.2 |
| Lower Nozzle Angle (Optional) | 45° up |
| Water Pressure | At each head at approximately 34.5Kpa (5 psi), each spray head has a corresponding press gauge, total water flow pressure is 50-150Kpa |
| Distance between the center Nozzle and the Device | Approximately 1.4m (55 inches) |
| Rack | Material: high-grade aluminum profile with casters |

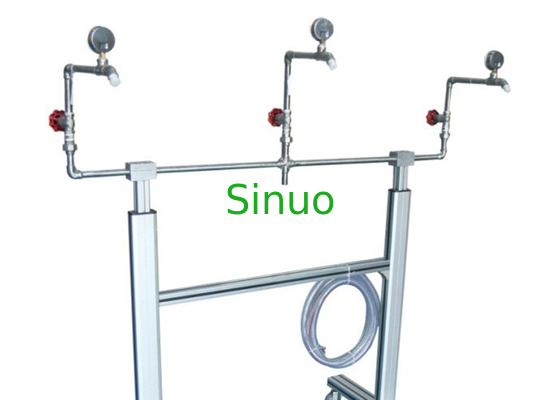

The device consists of a 3 UL spray heads, 3 pressure gauges, 3 control valves and a water supply pipe rack.
Note: we only quote the test apparatus, the water supply should be offered by client.
