| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Exporting Plywood Case |
| Delivery Period: | 30 Days |
| Payment Method: | T/T |
| Supply Capacity: | 20 Sets Per Month |

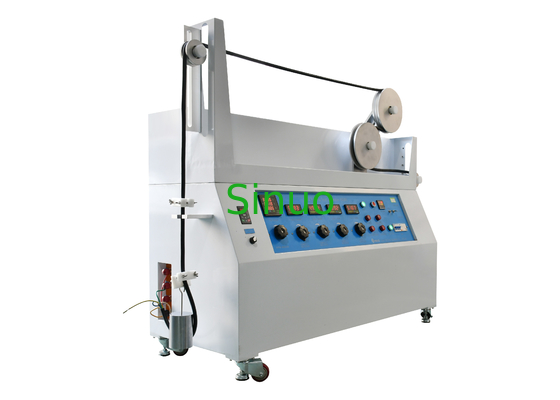

IEC60227-1 Flexible Cables Flexing Testing Equipment For Finished Flexible Cables
Product Infromation For Flexible Cables Flexing Testing Equipment:
The test machine is designed and manufactured according to standard IEC 60227.2 Clause 3.1 Figure 1, IEC 60245.2 Clause 3.1 Figure 1, IEC60245-1 clause 5.6.3.1 and etc. It complies with the relevant standard requirements of rubber plastic wires’ and cables’ mechanical strength flexing test. This test does not apply to flexible cables with cores of nominal cross-sectional area greater than 4mm2 and cables having more than 18 cores laid up in more than two concentric layers.
The test apparatus can meet the standard test requirements of the domestic and international standards, can be widely used. It has precision digital meter, thus, can accurately measure the smaller or larger current voltage. The change method for pulleys is simple and convenient. The test equipment adopts to chain drive mechanism, the performance is stable and the noise is rare.
Technical Characteristics For Flexible Cables Flexing Testing Equipment:
| Load Current | 0-25A |
| Load Voltage | 0-400V |
| Test Speed | 0.33m/S |
| Testing Distance | 1000±20mm |
| Test Times | 0-999999,can be preset |
| Suitable cores | 2-18 |
| Nominal Cross-sectional Area | 0.2-4 mm² |
| Diameter of Pulleys | 60,80,120,160,200mm(Customer optional, three kinds of standard) |
| Weight | 0.5-8Kg |
| Fault Detect | Current interruption, short circuit between conductors, test and short circuit between pulleys |
| Samples and Restrictions | Finished Soft Cable |
| Application | Used for the mechanical strength test of finished flexible cables. This test is not applicable to cables with more than two concentric layers whose conductors have a nominal cross-section of over 18 cores. |
| Test Principle | The 5m long sample passes through a pair of pulleys to reciprocate within a 1m stroke to realize the bending test of the wire and cable. |
| Structure | Equipment dimensions:about:1400×800×1450(mm)W×D×H,weight:280kg |
| Use Environment | Power supply:AC380V±10%/50-60Hz,working temperature:0-40℃ humidity:30%-90% |
