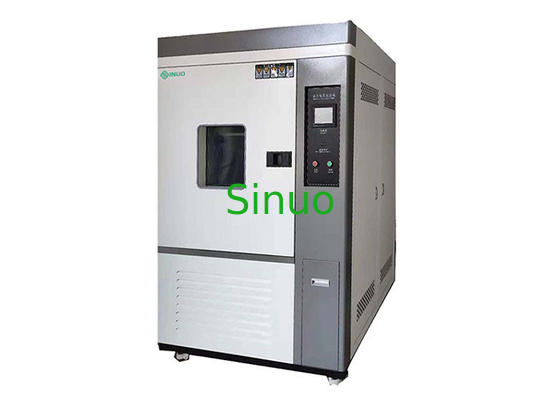

IEC 60068-2 Lithium Battery Explosion Proof High And Low Temperature Test Chamber

IEC 60068-2 Lithium Battery Explosion Proof High And Low Temperature Test Chamber

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 30 Days
Payment Method: T/T
Supply Capacity: 10 sets per month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN559B
Applied Standard:
IEC 60068-2
Working Volume:
225L
Inner Box Size:
600×500×750 Mm
Overall Device Size:
850×1550×1710 Mm
Temperature Range:
-70℃~+180℃
Humidity Range:
20%~98% R.H
Heating Time:
-70℃~+180 ℃ ≤120min
Cooling Time:
+20℃~-70 ℃ ≤90min
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
30 Days
Payment Terms:
T/T
Supply Ability:
10 sets per month
High Light:

Screwed Glands Torque Screwdriver Testing Equipment

,

IEC 60065-12 Screwdriver Testing Equipment

Product Description



IEC 60068-2 Lithium Battery Explosion Proof High And Low Temperature Test Chamber



Standards For Lithium Battery Explosion Proof High And Low Temperature Test Chamber:



IEC60068-2-1:2007 “Environmental Testing-Part 2-1: Tests-Test A: Cold, IDT”

IEC60068-2-2:2007 “Environmental Testing-Part 2-1: Tests- Test B-Dry heat, IDT”

IEC60068-2-78:2012 “Environmental Testing-Part 2-78: Tests-Test Cab: Damp heat, steady state, IDT”

IEC60068-2-30:2005 “Environmental Testing-Part 2-30: Tests-Test Db: Damp heat, cyclic (12h+12h cycle), IDT”

Product overview For Lithium Battery Explosion Proof High And Low Temperature Test Chamber:



This series of products are suitable for aerospace products, information electronic instruments, materials, electricians, vehicles, metals, electronic products, and various electronic components in high and low temperature or humid and hot environments, testing their performance indicators and quality management purposes. The high and low temperature damp heat test box, also known as artificial simulated environment test box, is used to test the heat resistance, cold resistance, dry resistance and temperature resistance of various materials. Suitable for quality management of plastic products, electronics, electrical appliances, food, vehicles, metals, chemicals, building materials and computers.



Technical Parameters For Lithium Battery Explosion Proof High And Low Temperature Test Chamber:



Volume and Size
Volume 225L
Test inner box size 600×500×750 mm (D×W×H)
Device size About 850×1550×1710 mm (D×W×H)
Specimen Limit This test equipment prohibits the test of flammable, explosive and volatile substances samples; the test of stored corrosive substances, the test of stored organisms, the test and storage of samples of stored strong electromagnetic emission sources
Main performance technical parameters
Functional requirements

1. (Air) test space cooling, heating, humidification, dehumidification;

2. According to the temperature and humidity settings, the test space reaches the set temperature and humidity

3. Each function can be operated independently

Test environmental conditions The ambient temperature is +25℃, the relative humidity is less than or equal to 85%, and there is no sample in the test box
Temperature and humidity range
Temperature range -70℃~+180℃
Humidity range 20%~98% R.H
Test area heating and cooling time
Heating time -70℃~+180 ℃ ≤120min
Cooling time +20℃~-70 ℃ ≤90min
Control precision
Temperature fluctuation ±0.5℃
Temperature deviation ±2.0℃
Evenness ±2.0℃
Relative Humidity Deviation ±3.0%RH (when humidity>75%RH) ±5.0%RH (when humidity≤75%RH)
Structure
Outer chamber material Electrolytic plate spray treatment
Internal chamber material SUS#304 stainless steel. (spray insulating paint)
Box insulation material Rigid polyurethane foam + glass fiber
Door insulation Rigid polyurethane foam + glass fiber



Air conditioning channel

Centrifugal fan, heater, evaporator (also dehumidifier), water supply and drainage outlet, humidifier, dry burning preventer, dry and wet bulb overtemperature sensor, wet bulb water tank
Cooling method Forced convection air-cooled
Water supply method Pump lift
Heater U-TYPE adopts imported stainless steel SUS#304 to make electric heating tube heater
Humidifier The humidification barrel is made of SUS#304 stainless steel, and is equipped with a water level observation window and a water level solenoid valve
water supply location Front lower fixed water tank for easy water supply
Storage tank volume 25L
Water quality requirements Resistivity≥500Ω·m
Maximum power 18KW
Maximum current 32A
Requirements for storage environment

The ambient temperature of the equipment should be kept within 0℃~+35℃

When the ambient temperature is lower than 0°C, (the equipment has been stopped for a long time), the water retained in the equipment should be drained to prevent the water in the pipeline from freezing and swelling and damaging the pipeline.

Weight About 900 kg



 IEC 60068-2 Lithium Battery Explosion Proof High And Low Temperature Test Chamber 0
