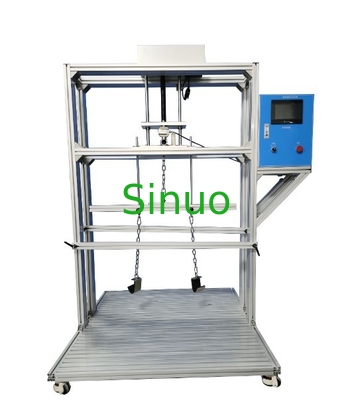

Single Station Carrying Handle Strength Test Device IEC62368-1 LCD Screen Operation

Single Station Carrying Handle Strength Test Device IEC62368-1 LCD Screen Operation
Single Station Carrying Handle Strength Test Device IEC62368-1 LCD Screen Operation Single Station Carrying Handle Strength Test Device IEC62368-1 LCD Screen Operation Single Station Carrying Handle Strength Test Device IEC62368-1 LCD Screen Operation

Large Image :  Single Station Carrying Handle Strength Test Device IEC62368-1 LCD Screen Operation

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2803
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood
Delivery Time: 1 Month
Payment Terms: T/T
Supply Ability: 10 Sets Per Month
Detailed Product Description
Equipment Dimensions: 1600 × 1200 × 2000 Equipment Weight: 180kg
Power Supply: AC220V50Hz Working Temp.: 5-35℃
Humidity: 30%-90% Force Range: 0-200kg
Force Speed: 0-200mm/s Test Range: Single And Multi-position
High Light:

Carrying Handle Strength Test Device

,

IEC62368-1 Carrying Handle Strength Test Device



IEC62368-1 IEC62368-1 LCD Screen Operation Single Station Carrying Handle Strength Test Device



Product information:



Carrying Handle Strength Test Device​ conform to IEC62368-1:2018 clause 8.8,IEC60601-1:2012standards.

Mechanical strength of handles for audiovisual, information technology and communication technology equipment and portable medical electrical equipment with carrying handles or handles.



Parameters:



Equipment dimensions about: 1600 × 1200 × 2000 (mm) W × D × H
Equipment weight 180kg
Power supply AC220V50Hz
working temperature 5-35℃
humidity 30%-90%
drive motor driven
Constant force time 0-9999s,Can be set
Force speed 0-200mm/s



1.Equipment structure and characteristics: Equipment dimensions: about: 1600 × 1200 × 2000 (mm) W × D × H, equipment weight: 180kg

2.Use environment: Power supply: AC220V50Hz, working temperature 5-35℃, humidity 30%-90%;

3.Control and operation: LCD screen operation (optional PLC control, touch screen operation);

4.Station: single station, frame: Aluminum profile rack, suitable for fixing different samples, Protect: Overload protection, leakage protection;

5.Dimensions and weight: WDH about 1600X1200X2000mm, about 180kg.



Specimen and Limitations:



Audio-visual, information technology and communication technology equipment and portable medical electrical equipment with carrying handles or handles.



Test principle:



Apply a force equal to 1~4 times the weight of the equipment to the handle through the PLC control force device, and evenly apply the force to the center of the handle in a range of 75mm (7cm for ME equipment), do not yank, start from zero within 5s-10s Gradually increase to the test value, keep for 1min.



Compliant standards:



GB4943.1-2022Section 8.8 Requirements;

IEC62368-1:2018 clause 8.8;

GB9706.1-2020Clause 9.4.4c);

IEC60601-1:2012.





Single Station Carrying Handle Strength Test Device IEC62368-1 LCD Screen Operation 0





Single Station Carrying Handle Strength Test Device IEC62368-1 LCD Screen Operation 1
