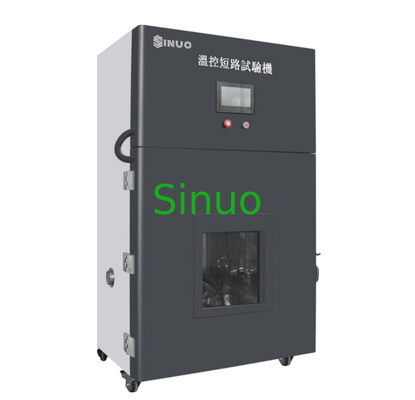

IEC 62133-1 Battery Temperature Controlled Type External Short Circuit Tester
Product information:
It is conforms to the standard of IEC62133-1:2017 clause 7.3.2 , IEC62133-2:2017 clause 7.3.1 and 7.3.2 , IEC62133:2014 clause 7.3.2,8.3.1, 8.3.2, IEC60086-4 clause 6.5.1, IEC60086-4 clause 6.5.8 6.5.9 ,IEC 60086-1, IEC61951, IEC61960, and so on .Temperature controlled type battery extra short circuit tester is designed according to multi type battery short circuit standard requirements, in the standard requirement, the short circuit device must conform to the range of internal resistance ≤5mΩ, to obtain the maximum short-circuit current required by the test, In addition, the circuit design of the short-circuit device must also be able to withstand the impact of large currents, so we have chosen industrial grade DC electromagnetic contactors and all-copper terminals and internal copper plate diversion, thick copper plate to effectively improve the cooling effect, so that a large current short circuit device is safer, effectively reducing the loss of test equipment and ensuring the accuracy of test data.
Technical Parameters:
| Max. Short Circuit Current | 1000A |
| Internal Resistance System | 80±20 mΩ |
| Remote Control Distance | 7m (without solid barrier) |
| Mechanical Endurance | 300000times |
| Electrical Endurance | Resistance load 50000 times |
| Temp. Range | Ambient ~ 100℃(complied to testing condition :20℃*5℃and 60℃*5℃) |
| Temp. Fluctuation | ±1℃ |
| Temp. Deviation | ±2℃ |
| Internal Dimension | W600 X D500 X H600mm |
| Inner Material | 304# stainless steel (thickness 1.0mm) |
| Outer Dimension | W940 X D780 X H1620mm |
| Outer Material | Cold rolled powder painted ( thickness 1.0mm,with inner cabinet total thickness 100mm) |
| Observation Window | Three-layer vacuum glass, easy for specimen observation, dimension: 390X360X20mm |
| Lighting | observation window with high brightness energy saving light, easy for specimen observation. |
| Testing Hole | One Φ50mm testing hole on each side of the machine (left & right side), with 2stainless steel cover, silicon cover 2 pieces. |
| Machine Pulley | Easy moving (adjust placement) and high strength bolts (fix place) combined usage |
| Heating System | Fin type heating pipe nicochrome U-type high efficiency heater. |
| Cycling System | Special moisture-proof heat radiation design, stainless steel axis lengthened cycling motor, match high low temperature resistant aluminum blades |
| Air Deflector Design | Able to up, down, left, right adjustment, ensure temperature uniformity. |
| Exhaust System | Exhaust port on machine back side. |
| Power Source | AC 220V ±10%, 60Hz |
| Power | 3.0KW |
| High Current Contactor |
(1) Long distance connects and disconnect DC voltage to 220V. (2)Rated working current 1000A,installed with series connection magnetic blow mediastinal plate clay arc shield arc extinguishing system. (3) Plane layout structure, electromagnetic system and machine contactor arc extinguishing system fixed on under frame independently. Adopt angular rotation clapper type electromagnetic system and double winding attracting coil, add arris pressing device on the rotating angular. Main contactor made with red copper. With low contact resistance, high reaction speed (4) Reliable contactor acting, safety, long service life, and easy repair and maintenance. |
| Remote Controller |
(1) Long distance wireless control; (2) Reliable and stable work, with auto- locking and interlocking function, strong anti-interference ability, long service life. |
| Voltmeter |
(1)Measuring voltage:0-100V,ensure testing accuracy； (2)Display accuracy:F.S ±0.2% rdg ±1digit； (3)Drive method:double integral method |
| Ammeter |
(1)Measuring current:0-1000A and 0-500A DC； (2)Display Accuracy:F.S±0.2% rdg±1digit； (3)Drive method:double integral method |
| Standard Configuration | The battery short circuit tester consist of high current contactor, remote controller, voltmeter, ammeter etc. |
|
Touch Screen Control (in English) |
 |
