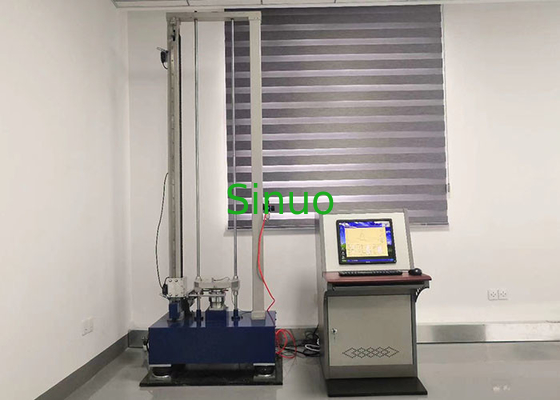

IEC62133-2 Battery Acceleration Impact Test System With Anti-Re-Shock Brake
Product information:
It conforms to IEC62133-1:2017 clause 7.3.4, IEC62133-2:2017 clause 7.3.8.2, IEC 60225-1 clause 6.13.2, IEC 60225-27 clause 10.6.2.2 and clause 10.6.2.3, IEC6IEC60086-4 clause 6.4.4, IEC 60068-2-29, IEC 60335-2-25 Annex BB, YD/T 2344.1 and etc.
Technical Parameters:
| Function& Features | This hydraulic shock impact test system has the special designed control and measuring system | |
| Adopt USB2.0interfaceconnect with PC, transfer control signal and measuring data. | ||
| With power cut off protection function, bench lifting height limitation function and pre-shock alarm function, safety reliable. | ||
| Base on DSP high quality dynamic measuring, analyzing and control system, shock impact control system also professional for shock pulse and analyzing. Consist of control system, measuring system and Windows based software, hardware adopts module and low noise design, realized the circuit of control and measuring functions all in the interface cabinet, and with independent structure combination (control cabinet and measuring cabinet separate). Use USB2.0 communication, independent from PC. Applied for normal shock and heavy shock environment shock event capture, measuring and analyzing. Complied with standard ISO,MIL-STD,IEC,OEO,ASTM etc. | ||
| Technical Parameters | Input channel | |
| Input channel | With1input electric input channel | |
| Sampling Frequency | Max 200k | |
| Voltage Range | -10Vp～+10Vp | |
| Coupling Mode | Electric Mode | |
| ADC Resolution | 16 bites | |
| Pulse Width | 0.5-1,000ms | |
| Acceleration | 5000g | |
| Dynamic Range | 80dB | |
| Total Harmonic Distortion | <-95dB | |
| Signal to Noise ratio | >95dB | |
| Frequency Accuracy | 0.01% | |
| Standard Compliance | ISO, MIL-STD-810, or customized standards | |
| External Trigger | With | |
| Mechanical Parameters | ||
| Dimension | 242mm×220mm×96mm | |
| Weight | 2.5kg | |
| Picture for reference |  |
|
| Adaptive Digital Filter | Filtration type | Lowpass and high pass filter can use simultaneously |
| Filtration Features | Able to set different filter channel for each. | |
| Low pass filtering parameter | No filtration, cut-off frequency, filter ratio | |
| High pass filtering parameter | Do not filter cut-off frequency | |
| Ideal Wave | Wave type | Half sinusoidal wave, trapezoidal wave, final peak saw tooth shock pulse |
| Standard Compliance | ISO, MIL-STD-810, or customized standards | |
| Auto Calibration | Automatically add the capture wave to ideal wave | |
| Verification | Auto comparison difference of captured wave and setting wave | |
| Display | Display the consistence of captured wave and setting wave | |
| Trigger | Trigger Source | Simulate input channel, external trigger, non-trigger |
| Trigger | Double Edge | |
| Trigger Level | 1~99%Of Relative ideal wave acceleration | |
| Running Mode | Manual running, auto running. | |
| Auto Noise Reducing | Optional function, setting noise reducing percentage trigger edge: double edge | |
| Data Saving | Memory Device | Data recording, signal store, content can be customized according requirements |
| Re-display | Manual replay shock wave | |
| Data Output | Direct output to Excel report | |
| WORD Test Report | According users setting automatically create word report, report content and format user can customize | |
| Running Records | Software auto record the running process | |
| Software interface (Half sinusoidal wave diagram) |  |
|
|
Final Peak Sawtooth wave (Optional) |
 |
|
| Trapzoidal Wave Optional |  |
|
| Half sinusoidal wave generator | Half sinusoidal wave generator mainly made of industrial rubber (considering the rubber strength and polymerization). Wave generator adopt cylindrical, normally with different thickness, as picture shows. Different thicknesses combined, with multi strength, realize different shock pulse width. | |
 |
||
| High Current Contactor |
(1) Long distance connects and disconnect DC voltage to 220V. (2)Rated working current 1000A,installed with series connection magnetic blow mediastinal plate clay arc shield arc extinguishing system. (3) Plane layout structure, electromagnetic system and machine contactor arc extinguishing system fixed on under frame independently. Adopt angular rotation clapper type electromagnetic system and double winding attracting coil, add arris pressing device on the rotating angular. Main contactor made with red copper. With low contact resistance, high reaction speed (4) Reliable contactor acting, safety, long service life, and easy repair and maintenance. |
| Remote Controller |
(1) Long distance wireless control; (2) Reliable and stable work, with auto- locking and interlocking function, strong anti-interference ability, long service life. |
| Voltmeter |
(1)Measuring voltage:0-100V,ensure testing accuracy； (2)Display accuracy:F.S ±0.2% rdg ±1digit； (3)Drive method:double integral method |
| Ammeter |
(1)Measuring current:0-1000A and 0-500A DC； (2)Display Accuracy:F.S±0.2% rdg±1digit； (3)Drive method:double integral method |
| Standard Configuration | The battery short circuit tester consist of high current contactor, remote controller, voltmeter, ammeter etc. |
|
Touch Screen Control (in English) |
 |
Shock Impact Test System Main Technical Parameters:
| Max. Loading Capacity | 10kg (can be customized) |
| Bench Dimension | 200mm×200mm (can be customized, cost is different) |
| Pulse Wave | Half sinusoidal wave |
| Shock Peak Acceleration | Half sinusoidal wave:150～20000m/s2 |
| Pulse Duration Time | Half sinusoidal wave: 0.6～20ms |
| Max. Shock Frequency | 80 times/min |
| Max. Shock Height | 1500mm |
| External Dimension | 1000mm×500mm×2700mm |
| Power Consumption | 2.5KVA |
| Bench Mass | 1500kg |
| Power | AC 380V±10% 3 Phase, 60Hz |
| Anti-secondary shock advice | Hydraulic Friction Braking Device |
| Working Condition | Power: AC 380V±10% 3 Phase, 60Hz |
| Environment Temp.: 5℃-40℃ | |
| Relative Humidity: ≤90%(25℃) | |
| Surrounding Environment: No corrosion medium, dry, good ventilation, away from electromagnetic influence and strong vibration source. |
This fully automatic shock test system is designed for measuring and ensure shock performance of products and packages. It can do normal shock test with half sine wave, square wave, sawtooth wave etc., simulate products under real environment shock conditions, thus improve the products and packages structure.
Feature:
1. This automatic shock test system with Windows operating system, easy for
operation, operator only need to type into testing data, system will automatic configurate
parameters and control machine, finish shock test accurately.
2. With anti-re-shock brake device, shock table fall freely, when shock wave pad rebound,
hydraulic brake piston impact thus shock table braking, avoid secondary shock and achieve accurate shock data.
3. With effective vibration damping device; for large shock tester, when do shock testing it has large instantaneous impact force, this device largely reduced the shock impact to the floor, small than 350×350mm ones no need special foundation, easy for installation.
4. Digital setting of shock height, shock table automatically lifting, with high control accuracy and good repetitively.
5. Configured with shock measuring system, shock energy data and wave with real time
display.
6. With high acceleration generator, for small testing specimens which need high
acceleration shock test, able to fix high acceleration generator on shock table, it can obtain
higher acceleration than IS series shock tester according to impact energy transfer principle. For specimen smaller than 200×200mm the testing requirements is: peak acceleration 5000-50000m/s2, acceleration duration time 0.2~1ms.
