IEC 62133-2 Battery Temperature Controlled Type Internal Short Circuit Tester

IEC 62133-2 Battery Temperature Controlled Type Internal Short Circuit Tester

MOQ: 1
Price: Customized
Standard Packaging: Plywood
Delivery Period: 1 Month
Payment Method: T/T
Supply Capacity: 5 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN5513
Temperature Range:
-20℃ ~ +100℃
Resolution:
0.01℃
Temp. Fluctuation:
0.5℃
Temp. Uniformity:
2.0℃
Max. Low Temperature:
-5℃
Temp. Rising Rate:
Ave.3℃/min
Temp. Cooling Rate:
Ave.1℃/min
Inner Chamber Material:
Mirror Stainless Steel
Minimum Order Quantity:
1
Price:
Customized
Packaging Details:
Plywood
Delivery Time:
1 Month
Payment Terms:
T/T
Supply Ability:
5 Sets Per Month
High Light:

IEC 62133-2 Battery Internal Short Circuit Tester

,

Internal Short Circuit Tester Temperature Controlled

Product Description



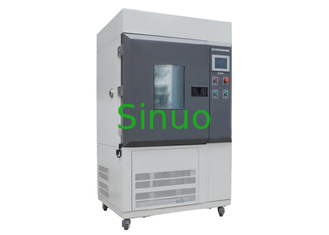

IEC 62133-2 Battery Temperature Controlled Type Internal Short Circuit Tester



Product information:


It conforms to IEC 62133-2: 2017 clause 7.3.9, JISC8714:2007 5.5, and etc.



Temperature Chamber Technical Parameters:



Temperature Range -20℃ ~ +100℃(Controllable)
Resolution 0.01℃
Temperature Fluctuation 0.5℃
Temperature Uniformity 2.0℃
Max. Low Temperature -5℃
Temperature Rising Rate Ave.3℃/min(0℃ to100℃,Nonlinear No-load)
Temperature Cooling Rate Ave.1℃/min(100℃to0℃,Nonlinear No-load)
Inner Chamber Dimension W600 X H750 X D500MM
Inner Chamber Material Mirror stainless steel with bottom reinforcement

External Chamber

Dimension

W1500mm*D1000mm*H1750mm

External Chamber

Material

Cold-Rolled Steel with paint-baking treatment (gray-white color)
Insulation Layer

The thermal isolation layer up to100mm, which employs fire-resistance high density PU foam material and the

thermal isolation coefficient less than0.0212kcal/m∙hr.

Chamber Door Single Door, Overall Size: 500×750mm
Observation Window

Single Door mountedwith3 layer vacuum glass viewing window with water-proof function (size: W430mm x H

580mm), the door framed signed with electrical heating function (automatic adjustment) to proof frost, dew,

thus, provide the user a clear vision to observe entire testing process;

Testing Hole

On the left side of test chamber, attesting hole withitsdiameter50mm is opened with silicone rubber plug and

Stainless steel cap/2pcs;

Sealing

Imported silicone glue is applied for door frame and test chamber sealing to provide a reliable sealing

performance;

Internal Lighting Viewing window with 9WPhilipis LED lamp with energy-saving and moisture and explosion proof function
Refrigeration System

1.AirCoolingMethod: Fully Enclosed single-stage compressor

2.Compressor: France Tecumseh Compressor1 set

3.Coolant: fluoride-free environmental coolant (USA DuPont) HFCR404A

4.Condenser: Air-cold highly efficient forced exchange fin type

5.Vaporizer: highly efficient multi-stage vaporizer with Hydrophilic membrane fin (thicker fin type)

6.Oil Separator: EMERSON

7.Vaporizer Pressure Regulator: Danfoss vaporizer pressure regulator (available to work in low temperature and

High humidity condition without no frosting)

8.Solenoidvalve: Japan saginomiya or Danfoss;

Heating System

1.Heater: Naked-nichrome alloy electrical heater

2. Control Method: signal output from controller through the SSR to gain a high precise non-contact switching

control

Control System

1.Control Method: Programmable high accurate micro-computer controller: chilled-mirror dew-point hygrometer

To control temperature and humidity system. Anti-windup PID, BTC control method (thermal compensation

function) +DDC intelligent cool flow control+ DEC intelligent electrical control (temperature test alternative

testing program setting)

2.TEMI 880 color touchscreen controller to display temperature and humidity with EN menu. And 3.1’’LCD

controller is compatible with computer control.



Internal Short Circuit Chamber Main Technical Parameters:



Max. Loading 200KG
Resolution 1/10000
Force Accuracy ≤0.5%
Force Magnification 7-stageautomatic shift
Displacement Resolution 1/1000
Displacement Accuracy ≤0.5%
Speed Range 0.01-20MM/S
Effective Range 0~ 150mm
Max. Testing Plane 300X300MM (Available to custom design to meet special test)
Voltage Acquisition Range 0~20V
Voltage Resolution 1mV
Voltage Acquisition Frequency 100Hz
Power Source 220V,60HZ


Servo Control System:



Standard Test Modular Function Provide users with test ranges and requirement from GB, ASTM, DIN, JIS, BS etc.
Test Specimens Data Provide all test data for all test specimens: once put, long available and available to modify equation to Improve test data and performance
Double Reporting Sheet Fully Open Reporting Sheet in various format for selection (Test program can create EXCEL format)
Unit Shift Length units (mm, cm, inch), force units (T, Kg, N, KN, g, lb.) can be displayed digitally and dynamic shift available;

Curve & Digraph

Diversification

1.Designedwith Auto Scale function, diagraph can be displayed as optimal size and available for dynamic shift;

2.Curve Display: Load-displacement, load-time, displacement-time, stress-strain, load- 2 point extending diagraph as well as curve comparison;

Test Result Available to output in EXCEL format;
Test End Automatic/manual storage of test data, automatic calculation of the max. force, upper/lower yield, loop approach, progressive approach. Non-proportional extension, tensile strength, compression strength, arbitrary elongation strength, constant load elongation strength, elastic modulus, elongation percentage, stripping area maximum value, minimum value, mean value, net energy, flextural modulus, Breaking Point x% loading, Breaking load x% displacement, etc.
Language Shift Chinese/English
Demo Function Designed with historical test data demo function
Control Software Main interface

IEC 62133-2 Battery Temperature Controlled Type Internal Short Circuit Tester 0

IEC 62133-2 Battery Temperature Controlled Type Internal Short Circuit Tester 1


Application:



This battery forced internal short-circuit tester is an integral testing equipment to performance a comprehensive test for temperature, voltage, internal-short circuit, which is applicable for battery cell safety test.

The battery is placed between crush boards, oil cylinder apply force to battery through piston, when system reach the setting value or voltage reach these setting value, system release pressure and return.



Feature:



1.Fully computerized, comprehensive testing force, deformation, voltage parameters;

2.Electrohydraulic servo drive, force, displacement, voltage display on same interface.

3.Innerbuilt sensor, not influence by outer environment;

4. Force sensor located on top of the cylinder, not influenced by inner temperature, higher accuracy;

5.Internal chamber designed as mirror stainless steel with viewing window, door lamp, air-blower as well as universal wheels that easy to move;

6. Computer control method to pre-set all parameters with excellent appearance and real-time monitoring.
