| MOQ: | 1 |
| Price: | Customized |
| Standard Packaging: | Plywood |
| Delivery Period: | 1 Month |
| Payment Method: | T/T |
| Supply Capacity: | 5 Sets Per Month |

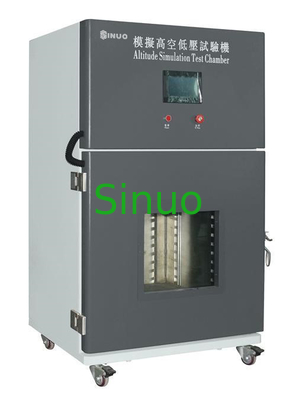

IEC 62133-1 Digital Display Battery High Altitude Low Pressure Test Chamber
Product information:
It conforms to IEC62133-1:2017 clause 7.3.7, IEC60086-4 clause 6.4.1, IEC 60086-1, UN 38.3, UL 1642, IEC61960, and etc.
Parameters:
| Temp. Range |
Ambient Temperature |
| Display Method | Digital Display |
| Unit | Kpa |
| Internal Dimension | W600 X D600 X H600mm |
| Internal Material | SUS 304# Stainless Steel |
| External Dimension | W940 X D780 X H1620mm |
| External Material | SECC steel plate, power painted (thickness 1.5mm) |
| Bottom | Installed with universal wheel |
| Observation Window | Toughened glass with explosion - proof membrane |
| Timer | 4 digits display 0~9999(Hour, Minutes, Seconds changeable) |
|
Vacuum Rate |
1.3Kpa(standard requires 11.6Kpa, vacuum gauge indication value -89.7Kpa) |
| Remarks:as the inner chamber pressure is(101.325Kpa), if wants the inner chamber pressure decreased to 11.6Kpa. Calculating according to atmosphere pressure of(101.325Kpa), need to blow out (89.7Kpa) pressure of the inside chamber, then the inner chamber can reach low pressure environment of (11.6Kpa). | |
| Pressure Range | 0~100Kpa(Controllable, display) |
| Pressure Fluctuation | ≤5% |
| Power Source | AC 220V 60HZ |
| Power | 2.0KW |
| Working Principle |
|
|
Touch Screen Monitoring |
|
To judge the test result on condition of no explosion, flame, smoke, electric leakage after test. And the battery protection valve should not be broken.
Structure:
1 .Chamber adopt high quality cold rolled steel plate, surface with powder painted, with strong anti-rust ability.
2. Working room with high-quality stainless-steel plate, rounded shape, smooth, and easy for cleaning.
3. Between working room and chamber, filled with superfine glass fiber insulation material.
4. Chamber door with double toughened glass structure, available for clear observation of the inside chamber.
5. Installed rubber sealing ring between working room and glass door, ensure high vacuum rate inside the chamber.
6. Integrated type: low pressure chamber on upper side, and vacuum pump on bottom side.
