IEC61032 Figure 4 Protection Verify Test Probe D For Hazardous Parts Test

IEC61032 Figure 4 Protection Verify Test Probe D For Hazardous Parts Test

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Exporting Boxed
Delivery Period: 3~5 Days
Payment Method: L/C, T/T
Supply Capacity: 100 PCS Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN2210-4
Applied Standard:
IEC61032
Applied Figure:
Figure 4
The Length Of Probe:
100±0.2 (mm)
The Length Of Handle:
100 (mm)
Probe Material:
Stainless Steel
Handle Material:
Nylon Material
Rigid Test Probe Diameter:
Ф1mm
Stop Face Diameter:
SФ35±0.2
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Exporting Boxed
Delivery Time:
3~5 Days
Payment Terms:
L/C, T/T
Supply Ability:
100 PCS Per Month
High Light:

Figure 4 Protection Verify Test Probe

,

Hazardous Parts Protection Verify Test Probe

,

IEC61032 Protection Verify Test Probe

Product Description

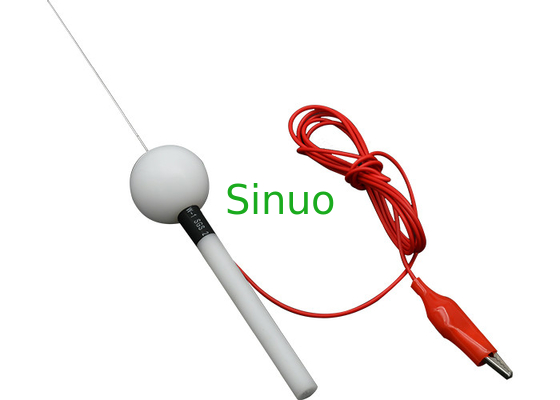

IEC61032 Figure 4 Protection Verify Test Probe D For Hazardous Parts Test



Product information:

This probe conforms to standard requirements of IEC61032 test probe D figure 4, and required by many standards such as IEC60529 for IP4 testing, IEC 60335-1, IEC60065 and etc.

This test probe D is intended to verify the protection of persons against access to hazardous

parts. It is also used to verify the protection against access with a wire.



Technical parameters:



Parameters /Model SN2210-4
Name Test probe D
Rigid Test Probe Diameter (mm) Ф1+0.05 0
Stop Face Diameter (mm) SФ35±0.2
Handle Diameter (mm) Ф10
Rigid Test Rod Length (mm) 100±0.2
Handle Length (mm) 100
Rigid Test Rod Material Stainless steel
Handle Material Nylon


IEC61032 Figure 4 Protection Verify Test Probe D For Hazardous Parts Test 0



Test procedures and operation

1. Please refer to the relevant standards.

Take IEC 60529:2013 clause 13.2 as an example:

The object probe is pushed against any openings of the enclosure with the force specified in table 7.



2. The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge. At the end of our probe handle, there is a M6 thread hole to match the force gauge.



3. For verifying whether LIVE PARTS touched, the probe is equipped with an alligator clip, recommended to work with our anti-shock probe experiment device or a 40~50V voltage indicator.



Notice

1. Please do not damage the appliance shape (such as scratching, bending, etc.).

2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.

3. Be careful of electric shock.
