| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard Exporting Box |
| Delivery Period: | 5 Days |
| Payment Method: | T/T |
| Supply Capacity: | 100 Sets Per Month |

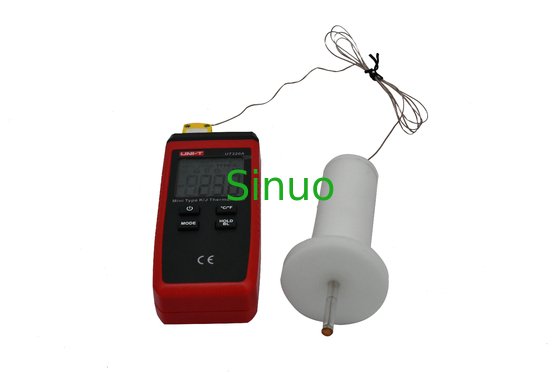

IEC60335-2 Probe With Thermometer For Surface Temperature Test
Product overview:
This probe conforms to the IEC 60335-2-11 Clause 11.3 Figure 101, IEC60335-2-6-2002 clause 11.101 figure 104, etc. It is mainly used to measure the temperature rise on the front surface of the easily accessible parts of drum-type dryer, upright electric cooker, cooking bench and oven.
Technical parameters:
| Item Name | Surface Temperature Probe |
| Measuring surface | Φ5×0.5mm; Tinned copper disc |
| Polycarbonate tube | Inside diameter: Φ3mm; outside diameter: Φ5mm |
| Thermocouple | Φ0.3mm K type |
| Contact force | 4±0.5 N |
| Baffle diameter | Φ50mm |
| Baffle thickness | Φ5mm |
| Length of thermocouple | >1 meter |
| Handle diameter | Φ30mm |
| Length of handle | 82mm |
What is a surface temperature probe?
Surface temperature probes to measure almost any surface. From the handle roller styles to the high-temp foundry style probe, surface thermocouples to meet the most challenging measurement requirements.
Test procedures and operation:
Please refer to the relevant standards.
Take IEC60335-2-6 clause 11.101 as an example:
Temperature rise of the front and side surfaces are measured using the probe of Figure 104. The probe is applied with a force of 4 N ± 1 N to the surface in such a way that best possible contact between the probe and the surface us ensured.
Push the upper surface of the stop face to the force scale line, then 4 N force is achieved.
|
|
