IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3

IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3
IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3 IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3 IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3 IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3

Large Image :  IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2210-23
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Aluminium Box
Delivery Time: 3 Days
Payment Terms: L/C, , T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Applied Standard: IEC60065:2014 Applied Clause: Clause 2.1.1.1, 6.2.1
Probe End Radius: R6 Mm Probe Diameter: Φ12 Mm
Baffle Diameter: Φ50 Mm Probe Length: 80 Mm
Probe Material: Stainless Steel Handle Material: Nylon
High Light:

Stainless Steel Blunt Test Probe

,

IEC 62368-1 Blunt Test Probe

,

Figure V.3 Blunt Test Probe

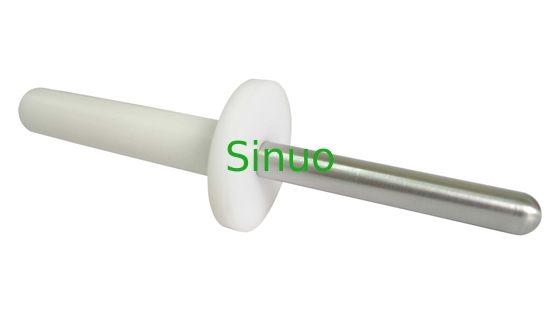

IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3



Product information:

The blunt probe of figure V.3 conforms to IEC 62368-1:2018 clause 5.3.2, 5.4.10, V.1.4 and figure V.3, IEC60950 figure 2C, IEC60065 figure B1, IEC62151 figure 3 and UL6500 figure B.1.

It is used for the bare parts of TNV circuits of information technology equipment to see whether they have sufficient protection.



Technical Parameters:

Probe Length 80 mm
Probe End Radius R6 mm
Probe Diameter Φ12 mm
Baffle Diameter of Handle Φ 50 mm
Probe material Stainless steel
Handle material Nylon



IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3 0



Sinuohave a full range of test probes according to different standards, and also can offer customized service.

IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3 1

Test procedures and operation

Please refer to the relevant standards.

Take IEC 60950 clause 2.1.1.1 as an example:

This test probe is applied to openings, without appreciable force, in every possible position, except that floor-standing equipment having a mass exceeding 40 kg is not tilted.

The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge. At the end of our probe handle, there is a M6 thread hole to match the force gauge. Showing as following reference picture:

IEC 62368-1 R6mm Stainless Steel Blunt Test Probe Of Figure V.3 2

Notice

1. Please do not damage the appliance shape (such as scratching, bending, etc.).

2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.

3. Be careful of electric shock.
