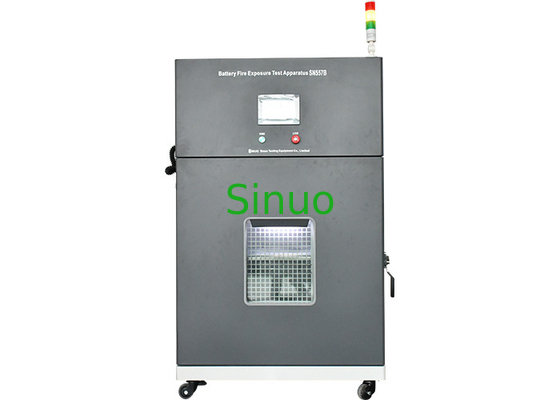

UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control

UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control
UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control

Large Image :  UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control

Product Details:
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN557B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Customized
Packaging Details: Plywood
Delivery Time: 1 Month
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 Sets Per Month
Detailed Product Description
Applied Standard: UL2054, UL 1642, GB 31241 And Etc. Number Of Station: 1 Station
Burner: Bunsen Burner, Pipe Inner Diameter 0.375 Inch (9.5mm) Flame Applicate Time: 99H59M59.9S±0.1s
Flame Height: 10~75±2mm Can Be Adjustable Testing Hole Diameter: 102mm
Fire Ignition Device: Auto Fire Ignition Testing Bar Diameter: 1/4 Inch (6.4mm) ×12 Inch (305mm)
High Light:

UL2054 Battery Fire Exposure Test Apparatus

,

PLC Battery Fire Exposure Test Apparatus

,

1 Station Battery Testing Equipment



UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control



Overview:

This apparatus conforms to UL2054 Clause 22 FIG. 22.1, UL 1642-2009 Clause 20 FIG. 20.1, GB 31241-2014 Article 7.9 FIG. E.2.



Technical Parameters:

1 Sample limits

This test equipment prohibits:

Testing or storage of biological specimens

Test or storage of strong electromagnetic emission source specimens

Testing or storage of radioactive material samples

Testing or storage of samples of highly toxic substances

Test or storage of specimens during testing or storage that may produce such substances or objects

2 Number of stations 1 station
3 Burner Bunsen burner, pipe inner diameter 0.375 inch (9.5mm)
4 Flame Applicate Time 99H59M59.9S±0.1s
5 Flame Height 10~75±2mm can be adjustable
6 Testing Hole Diameter 102mm
7 Fire Ignition Device Auto fire ignition
8 Schematic diagram of blowtorch and electric fire device UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control 0
10 Testing Bar Diameter 1/4 inch (6.4mm) ×12 inch (305mm)
11 Test Cover Width 24 inches (610mm) ×12 inch (305mm), octagonal
12 Test Cover Height 12inch (305mm)
13 Testing Aluminum Mesh Diameter 0.010-inch (0.25mm) 16hole×16hole
14 Octagonal stainless steel net cover Distance between each other 2 feet (610mm), Octagonal net cover height1 feet (305mm)
15 Screen 150×150mm (made of steel wire mesh with 20 holes per foot or steel wire 0.017 inch /0.43mm), Max capacity:5kg
16

Standard drawing of

Eight-sided cover

UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control 1
17

Physical picture for

Eight-sided cover

UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control 2
18 Burning Gas Requirement High purity liquefied petroleum gas (should be prepared by Customer)
19 Control system PLC, and a remote controller is offered, whole test procedure fully automatic
20 Display and Operation Method Touch Screen

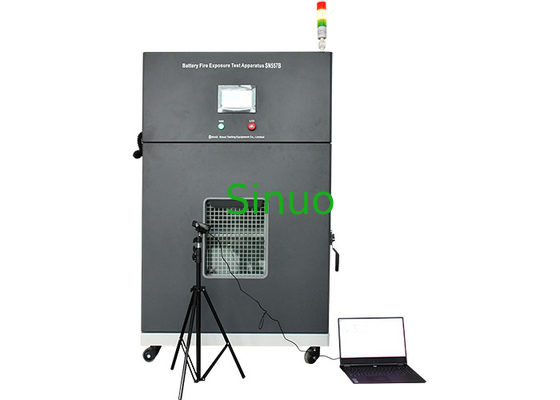

21 Video Monitor Brand MI
Model MJSXJ09CM
Size 115*78*78mm
Resolution 1296P(3 megapixel)
Viewing angle Horizontal 360° Vertical 108°
PTZ control APP control (Horizontal + Vertical)
Full color night market Low light full color
Infrared night vision Support
Two-way voice Support
Tracking function Support
Install method lay flat /upside down /side mounted
Wifi channel 2.4GHz
Storage Come with 32G microSD card
22 Inter Size W800XD700XH700 mm
23 Overall Dimension W1000XD900XH1620 mm
24 Observation Window 430 X 350mm(20mm thickness tempered explosion proof glass), with explosion-proof net
25 Inner chamber Material SUS304 Stainless steel
25 Outer Chamber Material Cold rolled powder painted
26 Smoke Extractor Φ 150mm on back side
27 Bottom Installed with universal wheels
28 Pressure Relief Port Test chamber with pressure relief device, when the pressure in the chamber to set up, self-open the pressure relief hole to release the pressure out of the chamber


Equipment overview

Battery Fire Exposure Test Apparatus is an essential test equipment for battery manufacturers and quality inspection departments. This equipment has the characteristics of convenient operation, safety and reliability, and high precision. It is an ideal testing machine for battery combustion and projectile testing.



Features

PLC and touch screen for control and operation.

When there is a smoke alarm, the exhaust will automatically open, and when there is no smoke, it will be closed after a delay.

Unsuccessful ignition alarm and cut off steam source.

Built-in lighting, through external reflection, to ensure the life and safety of lighting, etc.

The HD video camera and visual window can enable operator to clearly observe the changes of the test object in the experiment.

With explosion-proof glass, and equipped with steel mesh, double protection.

Controlled by remote controller, the maximum distance can reach 10 meters.



Test procedures

The test battery is placed on a flat table covered with a cover plate with a 4-inch diameter hole in the middle. Cover plate is made of steel wire mesh with 20 holes per foot or steel wire 0.017 inch (0.43mm). Place a screen with 8 sides of 2 feet wide (610 mm) and 1 foot high (305 mm) on each side around the specimen. The metal mesh consists of 0.010-inch (0.25mm) metal wire at 16-18 wires per inch. The sample is placed on a metal mesh, covering the hole in the center of the table, and then heated until it explodes or is destroyed. The direction of the safety valve is parallel to the asbestos cloth.

Acceptance: No part of the explosive battery penetrates the screen, and no part or all of the battery protrudes from the screen.

UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control 3UL 2054 Clause 22 Battery Fire Exposure Test Apparatus PLC Control 4
