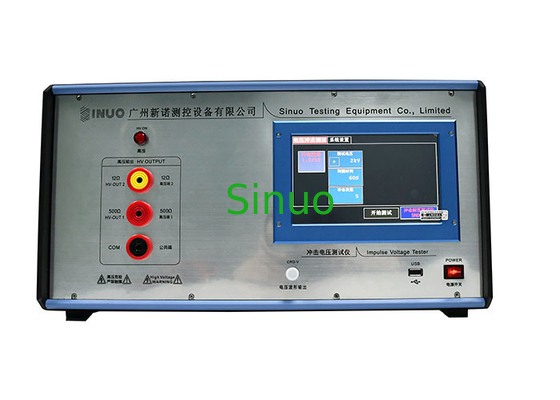

IEC 62368-1 Clause 5.4.2 Circuit 3 Of Table D.1 Surge Test Generator 10KV

IEC 62368-1 Clause 5.4.2 Circuit 3 Of Table D.1 Surge Test Generator 10KV

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Exporting Boxed
Delivery Period: 15 Days
Payment Method: L/C, T/T
Supply Capacity: 30 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN1104-3
Applied Standard:
IEC 62368-1
Applied Clause:
5.4.2 Circuit 3 Of Table D.1, Annex G.10
Output Voltage:
10kV (Max) ±5%
Output Polarity:
Positive, Negative, Positive And Negative Cycle
Input Impedance:
1KΩ,±10%
Impact Mode:
Automatic Or Manual
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Exporting Boxed
Delivery Time:
15 Days
Payment Terms:
L/C, T/T
Supply Ability:
30 Sets Per Month
High Light:

10KV Surge Test Generator

,

IEC 62368-1 Surge Test Generator

,

Clause 5.4.2 Surge Test Generator

Product Description



IEC 62368-1 Clause 5.4.2, 5.5.8, Annex D Circuit 3 of Table D.1 Surge Test Generator 10KV



Product Information:

This surge test generator conforms to IEC 62368-1:2018 clause 5.4.2, 5.5.8 and Annex D, circuit 3 of Table D.1, Annex G.10, etc., IEC 60950-1:2013 clause 7.4.2, reference 3 of table N.1, IEC60065:2014 clause 10.2, 13.3.4 a).

7-inch touch LCD interface, rich in functions, easy to operate, easy to upgrade software

Intelligent programmable high voltage power supply, built-in high voltage over voltage, over current and short circuit protection

Output intelligent detection, voltage error, no output warning



Technical Parameter:

Applied standard IEC 62368-1
Applied clause 5.4.2, Circuit 3 of Table D.1, Annex G.10
Output voltage 10kV (Max) ±5%
Output polarity Positive, negative, positive and negative cycle
Input impedance 1KΩ,±10%
Storage capacitor 1000PF
Charging resistance 15MΩ
Impact mode Automatic or manual
Impact cycles 1-9999
Impact interval time 3-999s (3s of which is the inherent charging time of the device)
Use Environment Temperature: 15℃-35℃, relative humidity: 10% -75%
Power source AC220±10%, 50/60Hz
Dimension 470mm×260mm×500mm
Weight 30kg
