IEC 62368-1 Annex T.7 Horizontal Surface For Drop Test
| Applied standard: | IEC 62368-1 | Applied clause: | Annex T.7 |
| Material: | Hardwood | The height drop of 750mm: | Desk-top Equipment And Movable Equipment |
| The height drop of 1000mm: | Hand-held, Direct Plug-in And Transportable Equipment | The height drop of 350mm: | A Part Acting As A Fire Enclosure |
| High Light: | Annex T.7 Horizontal Surface,IEC 62368-1 Horizontal Surface |
||

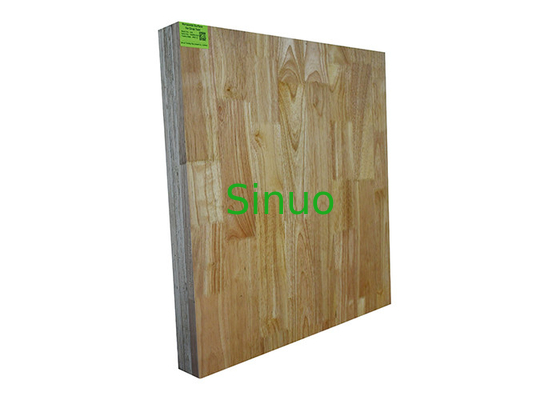

IEC 62368-1 Annex T.7 Horizontal Surface for Drop Test
Product information:
This horizontal surface is required by IEC 62368-1:2018 Annex T.7, IEC 60065-1:2014 clause 12.1.5, IEC 60950-1: 2013 Clause 4.2.6 and etc.
The horizontal surface consists of hardwood at least 13 mm thick, mounted on two layers of plywood each 19 mm to 20 mm thick, all supported on a concrete or equivalent non-resilient floor.
The height of the drop shall be:
- 750mm±10mm for desk-top equipment and movable equipment;
- 1000mm±10mm for hand-held equipment, direct plug-in equipment and transportable equipment;
- 350mm±10mm for a part acting as a fire enclosure only of desk-top equipment and movable equipment;
- 500mm±10mm for a part acting as fire enclosure only of hand-held equipment, direct plug-in equipment and transportable equipment.
