IEC 62368-1 2018 Clause 5.3.2, V.1.5 Figure V.4 Wedge Probe

Basic Properties
Place of Origin: China
Brand Name: Sinuo
Certification: Calibration Certificate (Cost Additional)
Model Number: SN2210-36
Trading Properties
Minimum Order Quantity: 1
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100 PCS Per Month
Tags

IEC 62368-1 Jointed Test Probe

IEC 62368-1 Blunt Probe

IEC 62368-1 Water Spray Test Apparatus
Specifications
Applied standard: IEC 62368-1 Applied clause: 5.3.2, V.1.5 And Figure V.4
Probe material: Stainless Steel Applied Specimen: Document/media Shredders
High Light:

Figure V.4 Wedge Probe

,

IEC 62368-1 Wedge Probe

,

Clause 5.3.2 Wedge Probe
Product Description

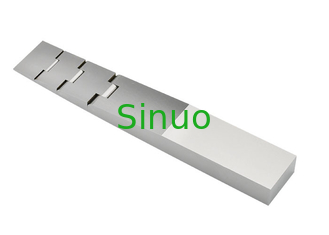

IEC 62368-1:2018 Clause 5.3.2, V.1.5 and Figure V.4 Wedge Probe



Product Information:

The wedge probe conforms to the standard requirement of IEC 62368-1:2018 clause 5.3.2, 8.5.4.3, V.1.5 and figure V.4, IEC 60950-1 Fig NAF.2(S5366)and NAF.3(S5370), BS 60950.1108/260/CD and etc.

It is used to test whether the slot openings can be touched by people. The test samples include information technology equipment.



Technical Parameters:

Applied standard IEC 62368-1
Applied clause 5.3.2, V.1.5 and figure V.4
Probe material Stainless steel
Applied Specimen Document/media Shredders


Part of Dimension:

The thickness of the probe varies linearly, with slope changes at the following points along the probe:



Distance from probe tip, mm Probe thickness, mm
0 2
12 4
180 24


IEC 62368-1 2018 Clause 5.3.2, V.1.5 Figure V.4 Wedge Probe



IEC 62368-1 2018 Clause 5.3.2, V.1.5 Figure V.4 Wedge Probe
