| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Standard Exporting Plywood Case |
| Delivery Period: | 30 Days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 20 Sets Per Month |

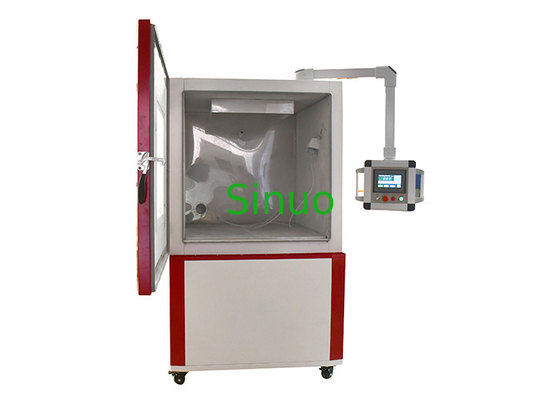

IEC 62368-1 Clause Y.5.5 Blowing Sand and Dust Test Chamber 1000L
Product information:
Blowing Sand and Dust Test Chamber is designed and manufactured according to IEC60529 Fig 2, required by IEC 62368-1:2018 clause Y.5.5, IEC 60335-1 clause 21, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.
The test device is suitable for sealing parts and enclosure’s sand and dust resistance capacity testing of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.
The test equipment uses intelligent and humanized PLC control system, the inner of the test equipment is made of high quality SUS304 stainless steel, the enclosure is A3 plate electrostatic spraying. And it also has large observation window and manual wiper device. The security protection is good.
Technical Parameters:
| Applied standard | IEC 62368-1 |
| Applied clause | Y.5.5 |
| Test hamber size | 1000*1000*1000mm(W*D*H) |
| External chamber size | Approx.1250*1450*2200 mm(W*D*H) |
| Baking dust temperature range | RT+10℃～60℃ |
| Fine dust | Below 75um |
| Coarse dust | Below 150um |
| Air velocity | Not more than 2m/s |
| Dust concentration | 2kg/m³ |
| Talc dosage | 2～5kgm³ |
| Dust blowing method | Top-down method |
| Air flow meter | 1-20L/M |
| Metal mesh diameter | 50um |
| Nominal distance between lines | Below 75um or below 150um |
| Shock time | 1s～99h (adjustable) |
| Test time timing | 1s～99h (adjustable) |
| Dust blowing control cycle | 1s～99h (adjustable) |
| Vacuum time | 1s～99h (adjustable) |
| Controller control function |
(1) Dust blowing time (stop, blowing) h/m/s adjustable; (2) Cycle period can be adjusted arbitrarily; (3) Preset test time: 0s～999h99m99s can be adjusted arbitrarily; (4) Power-on method: off- On-off |
| Circulation fan | Enclosed alloy low-noise motor. Multi-blade centrifugal fan |
| Vacuum pump range | 60-600L/H |
| Load-bearing | 10kg |
| Observation window | 1 PC |
| flashlight | 1 PC |
| Control system test piece power socket | Dustproof socket AC220V 16A |
| Control system | PLC controller + touch screen (Teelong) |
| Vacuum system |
1 Set including pressure regulating valve, suction nozzle and pressure regulating; Connecting pipe, vacuum pump. |
| Dust heating system | Stainless steel mica sheet heating jacket |
| Internal chamber material | SUS201 stainless mirror plate |
| external chamber material | A3 iron plate electrostatic spray treatment |
