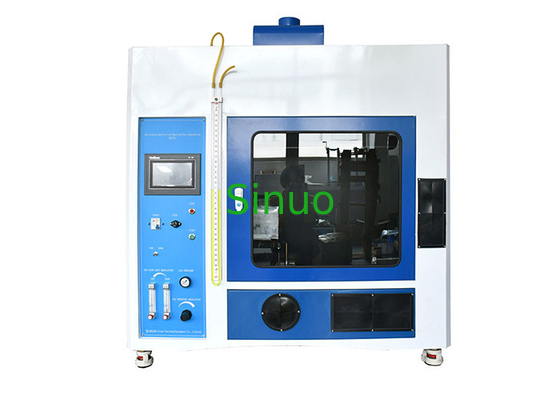

IEC 62368-1 Annex S Horizontal and Vertical Burning Test Apparatus
Product information:
The Horizontal and Vertical Burning Test Apparatus is required by IEC 62368-1:2018 Annex S, IEC 60950:2013 clause 4.7.3, IEC60065:2014 clause 14.1, 20.2.1, 20.2.4, Annex G, IEC60335-1 clause 30, etc.
It is also applicable in the horizontal, vertical flammability test of the relative combustion characteristic of foam plastics whose density is no-less than 250kg/m according to ISO845 test method.
It simulates the influence of early-stage flame when there is a fire around the electric and electronic products, so that to judge the igniting danger degree. It is mainly used in plastic and other non-metallic material sample, solid material. It is also applicable in the Horizontal, vertical flammability test of the relative combustion characteristic of foam plastics whose density is no-less than 250kg/m according to ISO845 test method.
Technical Parameters:
| Applied standard | IEC 62368-1 |
| Applied clause | Annex S |
| Working voltage | 220V/50Hz |
| Power/grade | 50W and 500W double power switching |
| Control method | PLC control, 7-inch color touch screen operation, with infrared remote controller |
| Blast burner | Inner diameter:Φ9.5±0.3mm,length:100mm,made of brass |
| Gas pressure | 0.1MPa |
| Gas flow | 50W:105±5ml/min or 18±1mm;500W:965±30ml/min or 117±3 mm,flow meter adjustment |
| U type pressure gauge back pressure water column height |
50W:10mm; 500W:125±5 mm |
| Test angle |
50W: 0°,45°; 500W: 20° |
| Burning time | 0-9999X0.1S Can be preset |
| Burning times | 0-9999 times,Can be preset |
| Residual flame/Residual glow | 0-9999X0.1S Can be displayed |
| Test flame calibration | Temperature measuring copper head:50W:Ф5.5mm±0.01mm,weight before drilling 1.76 ± 0 .01 g；500W:Ф9mm±0.01mm,weight before drilling 10 ± 0 .05g |
| Thermocouple: The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100° | |
| Distance between the Bunsen burner port to temperature measuring copper block:50W: 10±1 mm; 500W: 55±1 mm | |
| Flame height:50W: 20±2mm(there is no internal and external flame); 500W: Inner flame:40±2mm,Outer flame:125±10mm | |
| Temperature rise time from100±2°to 700°±3°50W: 44±2S; 500W: 54±2S | |
| Lighting | Equip with lighting in the test chamber, with control |
| Test chamber and dimension | > 0.75 cube, black inwall, with exhaust fan, dimension:1100*550*1200mm, 140kg |
