Clause 10 UV Weathering Accelerated Ageing Test Chamber IEC 62368-1

Clause 10 UV Weathering Accelerated Ageing Test Chamber IEC 62368-1

MOQ: 1
Price: Negotiable
Standard Packaging: Standard Exporting Plywood Case
Delivery Period: 30 Days
Payment Method: L/C, T/T
Supply Capacity: 20 Sets Per Month
Detail Information
Place of Origin
China
Brand Name
Sinuo
Certification
Calibration Certificate (Cost Additional)
Model Number
SN882
Applied Standard:
IEC 62368-1
Applied Clause:
10
Control Method:
Automatic
Lamp Life:
≥3000h
Irradiance Range:
UVA340:0.3W/m2~1.1 W/m2
Inner Material:
SUS Stainless Steel Plate
Standard Sample Holder:
24 (300mm×75mm), 48 Standard Samples Can Be Placed
Blackboard Temperature Range:
40℃~80℃
Minimum Order Quantity:
1
Price:
Negotiable
Packaging Details:
Standard Exporting Plywood Case
Delivery Time:
30 Days
Payment Terms:
L/C, T/T
Supply Ability:
20 Sets Per Month
High Light:

UV Weathering Accelerated Ageing Test Chamber

,

Clause 10 Accelerated Ageing Test Chamber

,

IEC 62368-1 Ageing Test Chamber

Product Description

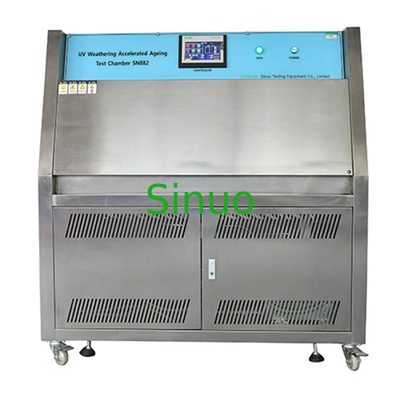

IEC 62368-1 Clause 10 UV Weathering Accelerated Ageing Test Chamber


Product Information:
The UV Weathering Resistance Test Chamber is designed and manufactured according to the standard requirements of IEC 62368-1:2018 clause 10. It is mainly used for artificial accelerated tests of plastics, coatings, and rubber materials under simulated environments of sunlight, rain, and dew. This equipment only takes a few days or a few weeks to reproduce the working conditions in the environment that takes months or even years to occur outdoors, or the aging of various parts and other laboratory damages, including fading, Color changes, loss of luster, chalking, cracking, cracking, wrinkling, blistering, embrittlement, strength reduction, oxidation. The test results can be used to select new materials, improve existing materials, or evaluate changes in material formulations.

Technical Parameters:

Applied StandardIEC 62368-1
Applied Clause10
Control methodAutomatic
Light source

UV-A 340 or UV-B 313
(Note: standard come with UV-A 340 lamp, if UV-B 313 lamps are required also, the cost will be added accordingly)

Lamp life≥3000h(Related to irradiance)
Irradiance rangeUVA340:0.3W/m2~1.1 W/m2
Irradiance calibration
Blackboard temperature range40℃~80℃
Condensation
Rain
Standard sample holder24 (300mm×75mm), 48 standard samples can be placed
Sample rain
Total exposure area5175cm2
DimensionsWidth:141cm,Depth:56 cm,height:135 cm
Installation areaWidth:≥260 cm,Depth:≥200 cm
Weight170kg
Power supplyAC120V,60Hz, 10A,well grounded
Water sourceNational laboratory tertiary water
ConfigurationUV aging test chamber 1set imported UVA 8 light tube
Inner materialSUS stainless steel plate
Enclosure material:Electrostatic spraying on A3 board


Clause 10 UV Weathering Accelerated Ageing Test Chamber IEC 62368-1 0

Clause 10 UV Weathering Accelerated Ageing Test Chamber IEC 62368-1 1

Clause 10 UV Weathering Accelerated Ageing Test Chamber IEC 62368-1 2
